6 Parameter Measurement Information

Unless otherwise noted, all input pulses are supplied by generators having the following characteristics:

  • PRR 10MHz
  • ZO = 50 W
  • dv/dt ≥ 1V/ns

Note: All parameters and waveforms are not applicable to all devices.
TXS0102V Data Rate, Pulse Duration, Propagation Delay, Output Rise And Fall Time Measurement Using A Push-Pull DriverFigure 6-1 Data Rate, Pulse Duration, Propagation Delay, Output Rise
And Fall Time Measurement Using A Push-Pull Driver
TXS0102V Data Rate, Pulse Duration, Propagation Delay, Output Rise And Fall Time Measurement Using An Open-Drain DriverFigure 6-2 Data Rate, Pulse Duration, Propagation Delay, Output Rise
And Fall Time Measurement Using An Open-Drain Driver
TXS0102V Load Circuit For Enable / Disable Time MeasurementFigure 6-3 Load Circuit For Enable / Disable Time Measurement
Table 6-1 Switch Configuration For Enable / Disable Timing
TESTS1
tPZL(2), tPLZ(1)2 × VCCO
tPHZ(1), tPZH(2)Open
(1) tPLZ and tPHZ are the same as tdis.
(2) tPZL and tPZH are the same as ten.
TXS0102V Voltage Waveforms Pulse Duration
(1) All input pulses are measured one at a time, with one transition per measurement.
Figure 6-4 Voltage Waveforms Pulse Duration

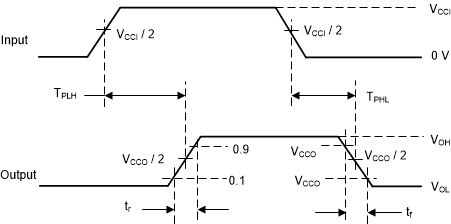

TXS0102V Voltage Waveforms Propagation Delay Times
(1) All input pulses are measured one at a time, with one transition per measurement.
Figure 6-5 Voltage Waveforms Propagation Delay Times
TXS0102V Voltage Waveforms Enable And Disable Times
(1) Waveform 1 is for an output with internal conditions so that the output is low, except when disabled by the output control.
(2) Waveform 2 is for an output with internal conditions so that the output is high, except when disabled by the output control.
Figure 6-6 Voltage Waveforms Enable And Disable Times
