6.9 Typical Characteristics: DAC

At TA = 25°C (unless otherwise noted)
AMC7836 C001_10U_INL.png
Figure 3. DAC Linearity Error vs Code
DAC Range: 0 to 10 V
AMC7836 C003_n10U_INL.png
Figure 5. DAC Linearity Error vs Code
DAC Range: –10 to 0 V
AMC7836 C005_5U_INL.png
Figure 7. DAC Linearity Error vs Code
DAC Range: 0 to 5 V
AMC7836 C007_n5U_INL.png
Figure 9. DAC Linearity Error vs Code
DAC Range: –5 to 0 V
AMC7836 C009_DAC_10U_INLvsTMP.png
Figure 11. DAC Linearity Error vs Temperature
DAC Range: 0 to 10 V
AMC7836 C011_DAC_n10U_INLvsTMP.png
Figure 13. DAC Linearity Error vs Temperature
DAC Range: –10 to 0 V
AMC7836 C013_DAC_5U_INLvsTMP.png
Figure 15. DAC Linearity Error vs Temperature
DAC Range: 0 to 5 V
AMC7836 C015_DAC_n5U_INLvsTMP.png
Figure 17. DAC Linearity Error vs Temperature
DAC Range: –5 to 0 V
AMC7836 C017_DAC_10U_5U_DOSvsTMP.png
Figure 19. DAC Offset Error vs Temperature
AMC7836 C019_DAC_ALL_GEvsTMP.png
Figure 21. DAC Gain Error vs Temperature

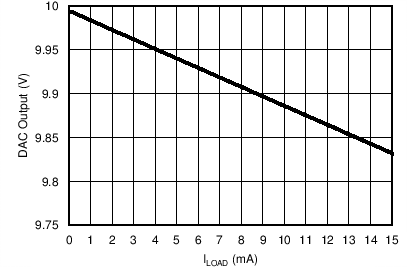

AMC7836 C021_DAC_SourceCurrent.png
Code 0xFFF, DAC range: 0 to 10 V, AVCC = 10 V, AVEE = 0 V
Figure 23. DAC Source Current
AMC7836 C023_SettlingTime_400toC00.png
Code 0x400 to 0xC00 to within ½ LSB
Figure 25. DAC Settling Time vs Load Capacitance
AMC7836 C025_DAC_NoiseDensity.png
Code 0x800
Figure 27. DAC Output Noise vs Frequency
AMC7836 C028_PowerOnOvershoot_Dual.png
AVSS = AVEE = –12 V, AVCC = 0 to 12 V, 2-ms ramp
Figure 29. DAC Power On Overshoot, Dual Supply

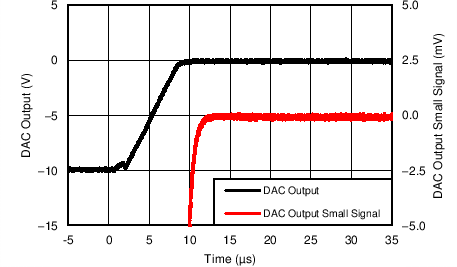

AMC7836 C031_DAC_ClampRecovery.png
Code 0xFFF, DAC range: –10 to 0 V, no load
Figure 31. DAC Clamp Recovery

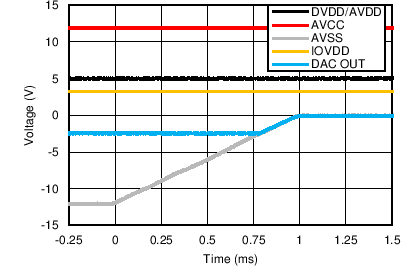

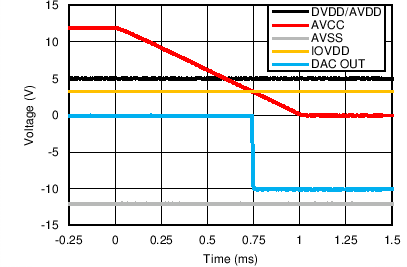

AMC7836 C033_SupplyCollapseIOVDD.png
Code 0xFFF, DAC range: –10 to 0 V, no load
Figure 33. DAC Output With IOVDD Supply Collapse
AMC7836 C034b_SupplyCollapseAVCC.png
Code 0xFFF, DAC range: –10 to 0 V, no load
Figure 35. DAC Output With AVCC Supply Collapse
AMC7836 C002_10U_DNL.png
Figure 4. DAC Differential Linearity Error vs Code
DAC Range: 0 to 10 V
AMC7836 C004_n10U_DNL.png
Figure 6. DAC Differential Linearity Error vs Code
DAC Range: –10 to 0 V
AMC7836 C006_5U_DNL.png
Figure 8. DAC Differential Linearity Error vs Code
DAC Range: 0 to 5 V
AMC7836 C008_n5U_DNL.png
Figure 10. DAC Differential Linearity Error vs Code
DAC Range: –5 to 0 V
AMC7836 C010_DAC_10U_DNLvsTMP.png
Figure 12. DAC Differential Linearity Error vs Temperature
DAC Range: 0 to 10 V
AMC7836 C012_DAC_n10U_DNLvsTMP.png
Figure 14. DAC Differential Linearity Error vs Temperature
DAC Range: –10 to 0 V
AMC7836 C014_DAC_5U_DNLvsTMP.png
Figure 16. DAC Differential Linearity Error vs Temperature
DAC Range: 0 to 5 V
AMC7836 C016_DAC_n5U_DNLvsTMP.png
Figure 18. DAC Differential Linearity Error vs Temperature
DAC Range: –5 to 0 V
AMC7836 C018_DAC_n10U_n5U_ZSEvsTMP.png
Figure 20. DAC Zero Code Error vs Temperature

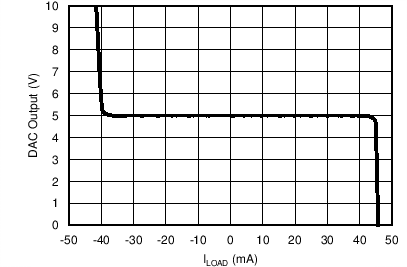

AMC7836 C020_DAC_LoadCurrent.png
Code 0x800, DAC range: 0 to 10 V
Figure 22. DAC Output Voltage vs Load Current
AMC7836 C022_DAC_SinkCurrent.png
Code 0x000, DAC range: 0 to 10 V, AVCC = 10 V, AVEE = 0 V
Figure 24. DAC Sink Current
AMC7836 C024_SettlingTime_C00to400.png
Code 0xC00 to 0x400 to within ½ LSB
Figure 26. DAC Settling Time vs Load Capacitance
AMC7836 C027_PowerOnOvershoot_Single.png
AVSS = AVEE = AGND, AVCC = 0 to 12 V, 2-ms ramp
Figure 28. DAC Power On Overshoot, Single Supply
AMC7836 C029_ClampVSavss.png
No load
Figure 30. DAC Clamp Output vs AVSS
AMC7836 C032_SupplyCollapseAVDD.png
Code 0xFFF, DAC range: –10 to 0 V, no load
Figure 32. DAC Output With AVDD and DVDD Supply Collapse
AMC7836 C034_SupplyCollapseAVss.png
Code 0xC00, DAC range: –10 to 0 V, no load
Figure 34. DAC Output With AVSS Supply Collapse
