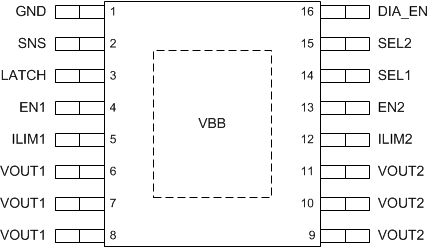

6 Pin Configuration and Functions

PWP Package
16-Pin HTSSOP
Top View
TPS2HB50-Q1 Pinout.gif

Pin Functions

PIN I/O DESCRIPTION
NO. NAME
1 GND — Device ground
2 SNS O Sense output
3 LATCH I Sets fault handling behavior (latched or auto-retry)
4 EN1 I Channel 1 control input, active high
5 ILIM1 O Connect pull-up resistor to VBB to set current-limit threshold on CH1
6-8 VOUT1 O Channel 1 output
9-11 VOUT2 O Channel 2 output
12 ILIM2 O Connect pull-up resistor to VBB to set current-limit threshold on CH2
13 EN2 I Channel 2 control input, active high
14 SEL1 I Diagnostics select 1
15 SEL2 I Diagnostics select 2
16 DIA_EN I Diagnostic enable, active high
Exposed pad VBB I Power supply input
