4.9.1 Converter 1 Start-Up

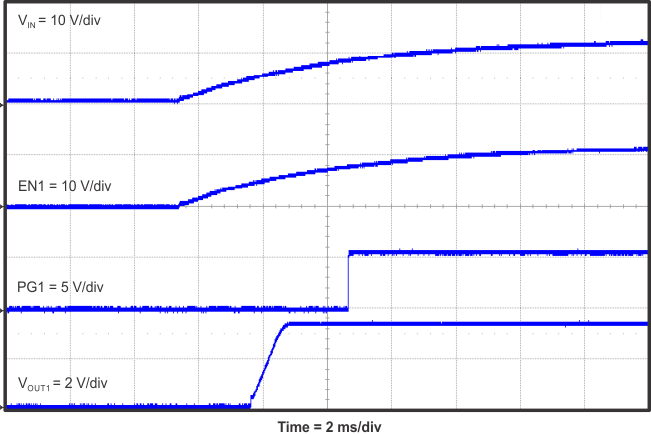

The TPS54494EVM start-up waveform of converter 1 relative to VIN is shown in Figure 4-16.

GUID-782E5CE6-5B08-4BEF-B683-A007761B60C2-low.gifFigure 4-16 TPS54494EVM Converter 1 Start-Up Relative to VIN

The TPS54494EVM start-up waveform of converter 1 relative to EN1 is shown in Figure 4-17.

GUID-4020487D-CA42-4CAB-8A22-5C9D3BAF7234-low.gifFigure 4-17 TPS54494EVM Start-Up Relative to EN1
