At TA = 25°C, VDD = 3.3V, 800ms conversion time (CT = 1), automatic full-scale range (RN[3:0] = 1100b), white LED, and normal-angle incidence of light, unless otherwise specified.
Figure 5-2 Spectral Response vs Wavelength
Figure 5-4 Output Response vs Input Illuminance: Entire Range = 0lux to 83klux

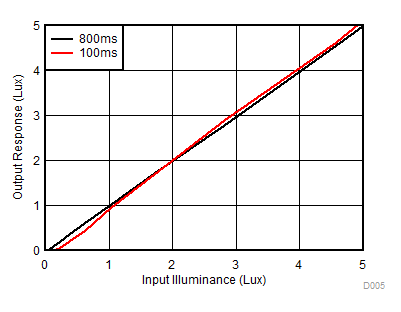

Figure 5-6 Output Response vs Input Illuminance: Low Range = 0lux to 5lux
| Input illuminance = 2490lux, normalized to response of 2560lux full-scale |
Figure 5-10 Dark Response vs Temperature (Grade 2)
Figure 5-12 Normalized Response vs Temperature (Grade 2)
Figure 5-14 Normalized Response vs Power-Supply Voltage
Figure 5-16 Supply Current vs Input Illuminance
Figure 5-18 Supply Current vs Temperature (Grade 2)
| M[1:0] = 00b, input illuminance = 0 lux |
| Input illuminance = 80lux, SCL = SDA, continuously toggled at I2C frequency Note: A typical application runs at a lower duty cycle and thus consumes a lower current. |
Figure 5-3 Output Response vs Input Illuminance, Multiple Light Sources: Fluorescent, Halogen, Incandescent
Figure 5-5 Output Response vs Input Illuminance: Mid Range = 0lux to 100lux
| Input illuminance = 33lux, normalized to response of 40.95lux full-scale |
Figure 5-9 Conversion Time vs Power Supply
Figure 5-11 Dark Response vs Temperature (Grade 3)
Figure 5-13 Normalized Response vs Temperature (Grade 3)
Figure 5-15 Normalized Response vs Illuminance Angle
Figure 5-17 Shutdown Current vs Input Illuminance
Figure 5-19 Supply Current vs Temperature (Grade 3)
| M[1:0] = 00b, input illuminance = 0lux |
