PCB Layout

Figure 5-2 through Figure 5-5 illustrate the PCB layers of the TMCS1100EVM.

GUID-397603B6-67B5-4C58-A935-820C373DDA99-low.gifFigure 5-2 Top Overlay
GUID-5855F514-6A1F-4E7F-955E-B8560AD6D28A-low.gifFigure 5-3 Top Layer

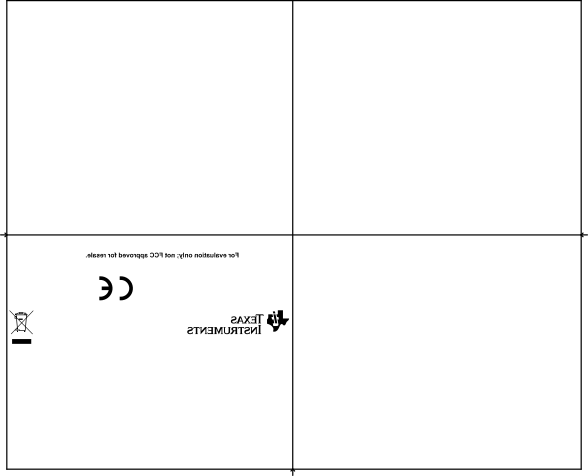

GUID-9E63B139-4BF6-439C-96F5-663523395F99-low.gifFigure 5-4 Bottom Overlay

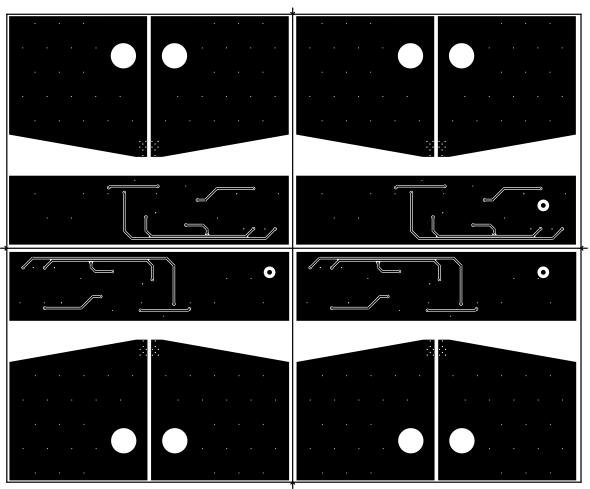

GUID-2DC0D5BB-61E1-4AFD-802D-937E15CB9CBA-low.gifFigure 5-5 Bottom Layer
