3.1.3 Increase Number of Controller Inputs

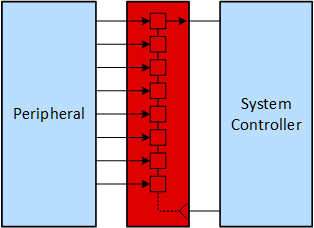

GUID-089963EF-E977-448A-A66B-D830351DEE1E-low.gif Figure 3-3 Using Shift-register to Serialize Parallel Data and Conserve Controller I/O's
  • Input 8 bits of parallel data to the System Controller with as few as two I/Os
  • Daisy chain shift registers to produce large numbers of inputs
  • Input up to 180 Mbps of serial data with a parallel-in serial-out shift register
  • See online parametric search tool to find the right Shift Register
