4.5 Output Voltage Ripple

The TPS562231EVM output voltage ripple is shown in Figure 4-3, Figure 4-4, and Figure 4-5. The output currents are as indicated.

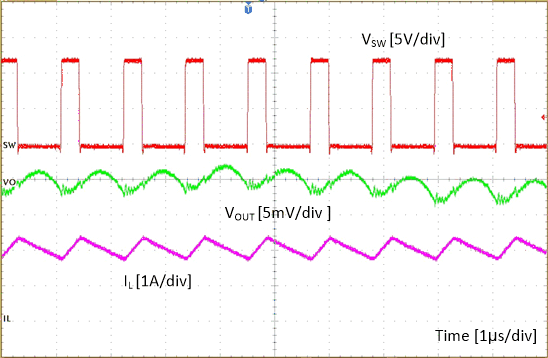

GUID-97C79B2C-0DCD-4EC1-9E49-42721B8068A9-low.gifFigure 4-3 TPS562231EVM Output Voltage Ripple in CCM
GUID-A6D20F07-F560-49F4-A99C-D8103B3539AA-low.gifFigure 4-4 TPS562231EVM Output Voltage Ripple in DCM
GUID-D75F5496-D0F6-49ED-97C0-DC4183E7434C-low.gifFigure 4-5 TPS562231EVM Output Voltage Ripple on No-load
