5.2 Interface Hardware Setup

Connect the USB2ANY adapter to the PC using the supplied USB cable. Attach the EVM connector, J3 to the USB2ANY adapter using the supplied 10-pin ribbon cable. The ribbon cable connector is keyed to prevent incorrect installation..

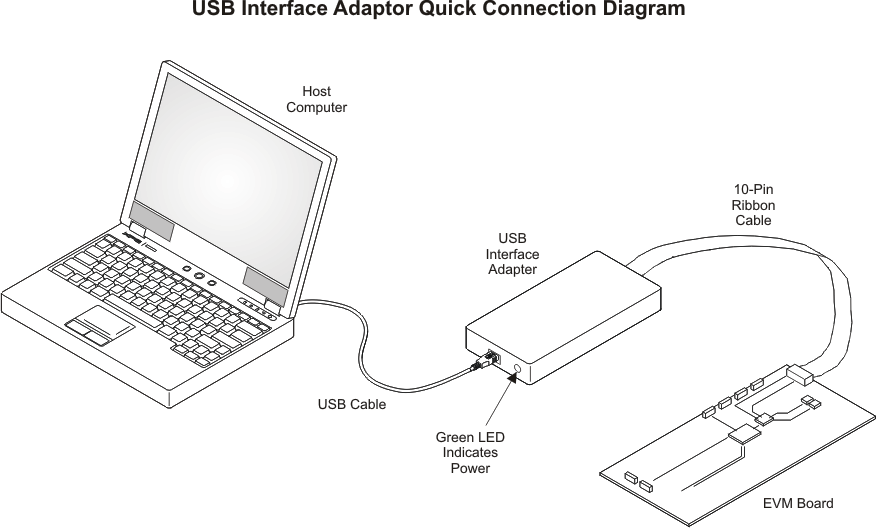

Figure 5-1 shows a quick adapter connection overview.

GUID-6405093D-D099-4260-B97E-E3ACC7E1857C-low.gifFigure 5-1 Quick Connection Overview
