6.14 Typical Characteristics

Data at high and low temperatures are applicable only within the recommended operating free-air temperature ranges of the various devices.

TL431 TL432 Reference Voltage vs Free-Air TemperatureFigure 6-1 Reference Voltage vs Free-Air Temperature
TL431 TL432 Cathode Current vs Cathode VoltageFigure 6-3 Cathode Current vs Cathode Voltage
TL431 TL432 Off-State Cathode Current vs Free-Air TemperatureFigure 6-5 Off-State Cathode Current vs Free-Air Temperature
TL431 TL432 Equivalent Input Noise Voltage vs FrequencyFigure 6-7 Equivalent Input Noise Voltage vs Frequency
TL431 TL432 Reference Current vs Free-Air TemperatureFigure 6-2 Reference Current vs Free-Air Temperature
TL431 TL432 Cathode Current vs Cathode VoltageFigure 6-4 Cathode Current vs Cathode Voltage

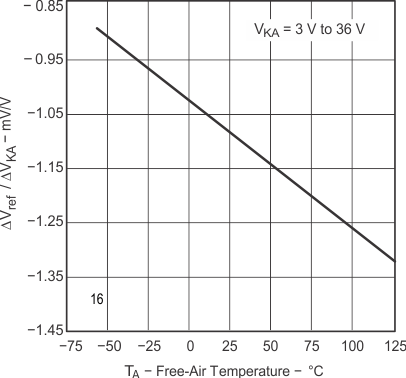

TL431 TL432 Ratio of Delta Reference Voltage to Delta Cathode Voltage vs Free-Air TemperatureFigure 6-6 Ratio of Delta Reference Voltage to Delta Cathode Voltage vs Free-Air Temperature
TL431 TL432 Equivalent Input Noise Voltage Over a 10S PeriodFigure 6-8 Equivalent Input Noise Voltage Over a 10S Period
TL431 TL432 Test Circuit for Equivalent Input Noise Voltage Over a 10S PeriodFigure 6-9 Test Circuit for Equivalent Input Noise Voltage Over a 10S Period
TL431 TL432 Small-Signal Voltage Amplification vs FrequencyFigure 6-10 Small-Signal Voltage Amplification vs Frequency
TL431 TL432 Reference Impedance vs FrequencyFigure 6-12 Reference Impedance vs Frequency
TL431 TL432 Pulse ResponseFigure 6-14 Pulse Response
TL431 TL432 Stability Boundary Conditions for All TL431 and TL431A Devices (Except for SOT23-3, SC-70, and Q-Temp Devices)

The areas under the curves represent conditions that can cause the device to oscillate. For curves B, C, and D, R2 and V+ are adjusted to establish the initial VKA and IKA conditions, with CL = 0. VBATT and CL then are adjusted to determine the ranges of stability.
Figure 6-16 Stability Boundary Conditions for All TL431 and TL431A Devices (Except for SOT23-3, SC-70, and Q-Temp Devices)
TL431 TL432 Stability Boundary Conditions for All TL431B, TL432, SOT-23, SC-70, and Q-Temp Devices

The areas under the curves represent conditions that can cause the device to oscillate. For curves B, C, and D, R2 and V+ are adjusted to establish the initial VKA and IKA conditions, with CL = 0. VBATT and CL then are adjusted to determine the ranges of stability.
Figure 6-18 Stability Boundary Conditions for All TL431B, TL432, SOT-23, SC-70, and Q-Temp Devices
TL431 TL432 Test Circuit for Voltage AmplificationFigure 6-11 Test Circuit for Voltage Amplification
TL431 TL432 Test Circuit for Reference ImpedanceFigure 6-13 Test Circuit for Reference Impedance
TL431 TL432 Test Circuit for Pulse ResponseFigure 6-15 Test Circuit for Pulse Response
TL431 TL432 Test Circuits for Stability Boundary ConditionsFigure 6-17 Test Circuits for Stability Boundary Conditions
TL431 TL432 Test Circuit for Stability Boundary ConditionsFigure 6-19 Test Circuit for Stability Boundary Conditions
