6.13 Typical Characteristics

TA = 25°C, VCC = 5 V, VEE = 0 V, VCM = VCC/2, CL = 15 pF
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc03-input-offset-v-temperature-5v-snvsax0.gif
VCC = 1.8 - 5.0V
Figure 3. Input Offset vs. Temperature
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc13-input-offset-v-vcm-for-50-devices-3pt3v-snvsax0.gif
VCC = 3.3 V, 50 devices
Figure 5. Input Offset Voltage vs. VCM

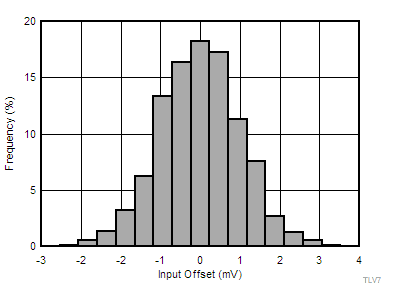

TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc11-input-offset-histogram-snvsax0.gif
Distribution Taken From 10,777 Comparators
Figure 7. Input Offset Voltage Histogram
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc02-hysteresis-v-vcm-5v-snvsax0.gif
VCC = 5.0V
Figure 9. TLV70x1 Hysteresis vs. VCM
TLV7011 TLV7021 TLV7012 TLV7022 Hyst_v_Temp.gif
VCC = 1.8V - 5.0V
Figure 11. TLV70x2 Hysteresis vs. Temperature
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc20-TLV7011-bias-current-v-temperature-snvsax0.gif
A.
VCC = 3.3V
Figure 13. Input Bias Current vs. Temperature
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc04-output-voltage-high-v-output-source-current-5v-snvsax0.gif
VCC = 5 V
Figure 15. TLV701x Output Voltage High vs. Output Source Current

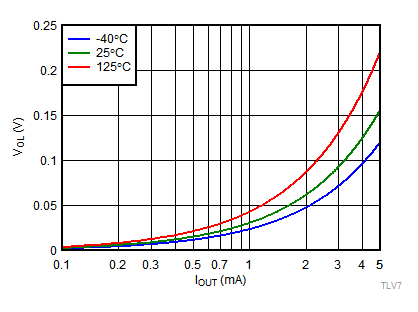

TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc05-output-voltage-low-v-output-source-current-5v-snvsax0.gif
VCC = 5 V
Figure 17. Output Voltage Low vs. Output Sink Current

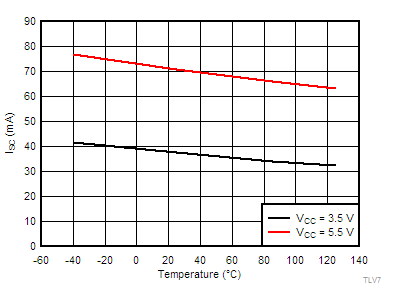

TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc07-output-short-circuit-current-source-v-temperature-snvsax0.gif
VCM = VCC/2
Figure 19. TLV701x Output Short-Circuit (Source) Current vs. Temperature
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc19-output-short-circuit-current-source-v-vcc-snvsax0.gif
A.
VCM = VCC/2
Figure 21. TLV701x Output Short Circuit (Source) vs. VCC
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc16-icc-v-vcc-snvsax0.gif
VCM = VCC/2
Figure 23. ICC vs. VCC
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc21-TLV7011-rise-time-v-load-capacitance-snvsax0.gif
A.
VOD = 100mV
Figure 25. TLV701x Output Rise Time vs. Load Capacitance
TLV7011 TLV7021 TLV7012 TLV7022 TLV7011-Graph-001-TpLH-vs-Vod-SLVSDM5.gif
TA = 25°C,
Figure 27. TLV701x Propagation Delay (L-H) vs. Input Overdrive
TLV7011 TLV7021 TLV7012 TLV7022 TLV7011-Graph-003-TpLH-vs-Vod-SLVSDM5.gif
VCC = 5 V
Figure 29. TLV701x Propagation Delay (L-H) vs. Input Overdrive
TLV7011 TLV7021 TLV7012 TLV7022 TLV7021-Graph-007-TpLH-vs-Vod-SLVSDM5.gif
Rpull-up = 2.5k
Figure 31. TLV702x Propagation Delay (L-H) vs. Input Overdrive
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc12-input-offset-v-vcm-for-50-devices-1pt8v-snvsax0.gif
VCC = 1.8 V, 50 devices
Figure 4. Input Offset Voltage vs. VCM
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc14-input-offset-v-vcm-for-50-devices-5v-snvsax0.gif
VCC = 5 V, 50 devices
Figure 6. Input Offset Voltage vs. VCM
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc01-hysteresis-v-temperature-5v-snvsax0.gif
VCC = 1.8V - 5.0V
Figure 8. TLV70x1 Hysteresis vs. Temperature
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc10-hysteresis-histogram-snvsax0.gif
Distribution Taken From 10,777 Comparators
Figure 10. TLV70x1 Hysteresis Histogram
TLV7011 TLV7021 TLV7012 TLV7022 Hyst_v_Vcm.gif
VCC = 5.0V
Figure 12. TLV70x2 Hysteresis vs. VCM

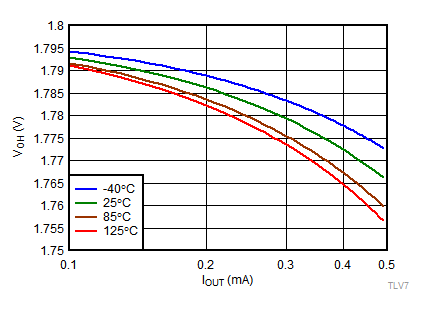

TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc04-output-voltage-high-v-output-source-current-1pt8v-snvsax0.gif
VCC = 1.8 V
Figure 14. TLV701x Output Voltage High vs. Output Source Current

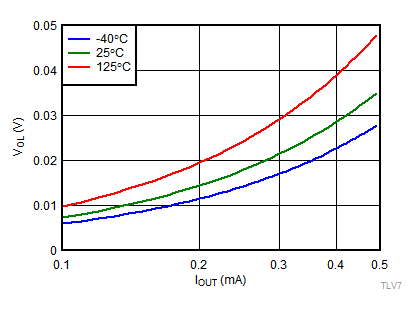

TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc05-output-voltage-low-v-output-source-current-1pt8v-snvsax0.gif
VCC = 1.8 V
Figure 16. Output Voltage Low vs. Output Sink Current
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc06-output-short-circuit-current-sink-v-temperature-snvsax0.gif
VCM = VCC/2
Figure 18. Output Short-Circuit (Sink) Current vs. Temperature
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc09-output-short-circuit-current-sink-v-vcc-snvsax0.gif
VCM = VCC/2
Figure 20. Output Short Circuit (Sink) vs. VCC
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc15-icc-v-temperature-snvsax0.gif
VCM = VCC/2
Figure 22. ICC vs. Temperature
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc18-icc-v-vcm-5v-snvsax0.gif
VCC = 5 V
Figure 24. ICC vs. VCM
TLV7011 TLV7021 TLV7012 TLV7022 TLV70xx-tc22-TLV7011-fall-time-v-load-capacitance-snvsax0.gif
A.
VOD = 100mV
Figure 26. Output Fall Time vs. Load Capacitance
TLV7011 TLV7021 TLV7012 TLV7022 TLV7011-Graph-002-TpHL-vs-Vod-SLVSDM5.gif
TA = 25°C
Figure 28. Propagation Delay (H-L) vs. Input Overdrive
TLV7011 TLV7021 TLV7012 TLV7022 TLV7011-Graph-004-TpHL-vs-Vod-SLVSDM5.gif
VCC = 5 V
Figure 30. Propagation Delay (H-L) vs. Input Overdrive
