2.2 Efficiency

The efficiency of this EVM peaks at a load current of about 2 A and then decreases as the load current increases toward full load. Figure 2-1 shows the efficiency for the TPS54623EVM-012 at an ambient temperature of 25°C.

GUID-23B6A282-8CFB-4716-A511-A3ABAD80FCA0-low.gif Figure 2-1 TPS54623EVM-012 Efficiency

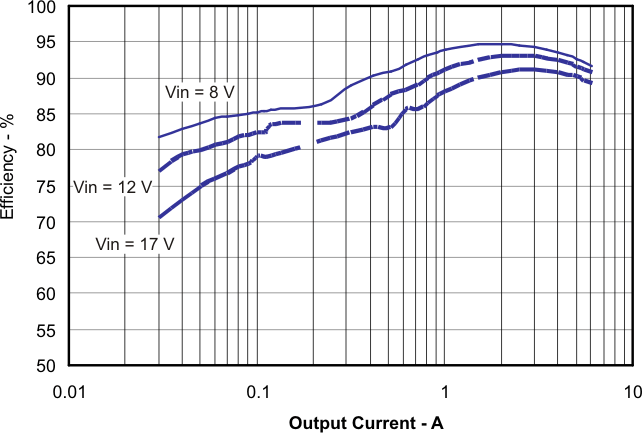

Figure 2-2 shows the efficiency for the TPS54623EVM-012 using a semi-log scale to more easily show efficiency at lower output currents. The ambient temperature is 25°C.

GUID-CA0C2D34-D7D9-4328-BF54-FB96211E026A-low.gif Figure 2-2 TPS54623EVM-012 Low-Current Efficiency

The efficiency may be lower at higher ambient temperatures, due to temperature variation in the drain-to-source resistance of the internal MOSFET.
