SLVUAK9A December 2015 – May 2021 TPS65265
3 Board Layout
Figure 3-1 through Figure 3-5 illustrate the TPS65265EVM-705 PCB layout.
Figure 3-1 Component Placement (Top Layer)
Figure 3-2 Board Layout (Top Layer)

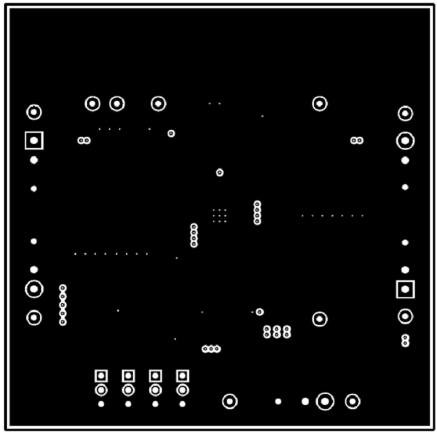

Figure 3-3 Board Layout (Second Layer)

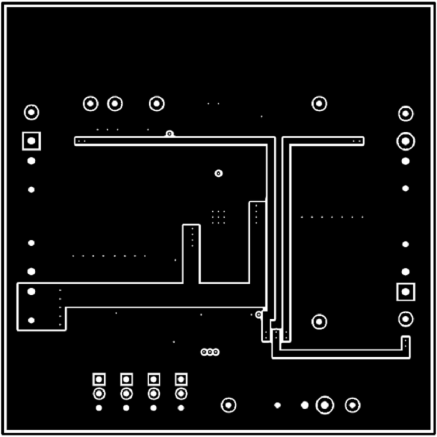

Figure 3-4 Board Layout (Third Layer)
Figure 3-5 Board Layout (Bottom Layer)
