4.7 Output Voltage Ripple

The TPS562210AEVM-663 output voltage ripple is shown in Figure 4-7, Figure 4-8, and Figure 4-9. The output currents are as indicated.

GUID-C7124E65-560C-4A60-AB31-685F8FA5FFD1-low.gifFigure 4-7 TPS562210AEVM-663 Output Voltage Ripple, IOUT = 2 A

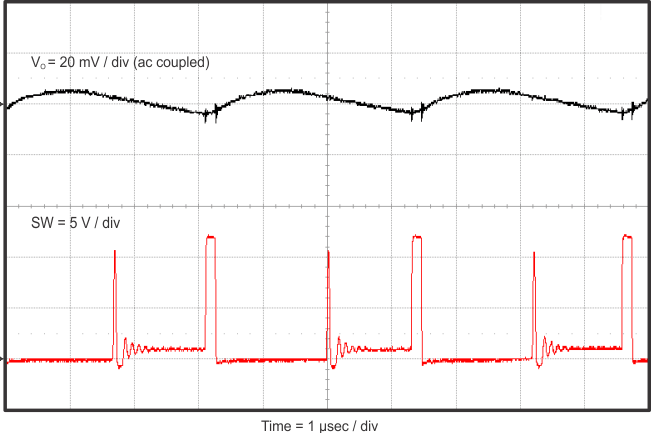

GUID-E2FCE2F0-2C08-44EC-988D-9BF1975B2809-low.gifFigure 4-8 TPS562210AEVM-663 Output Voltage Ripple, IOUT = 200 mA
GUID-22B4BE4C-D1CF-47F4-AA95-88A49A3A64BD-low.gifFigure 4-9 TPS562210AEVM-663 Output Voltage Ripple, IOUT = 0 mA
