10 TPS65988EVM Board Layout
Figure 9-1 through Figure 10-12 contain the PCB layouts of the TPS65988EVM.

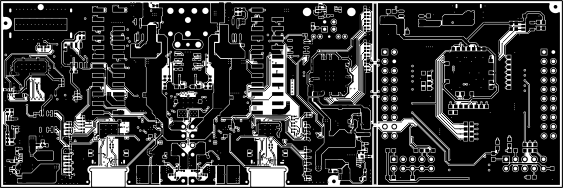

Figure 10-1 TPS65988EVM Top Overlay

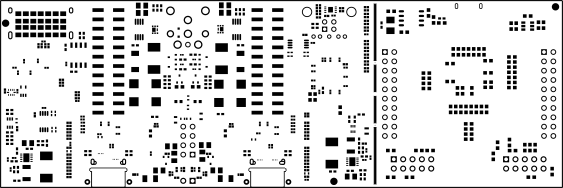

Figure 10-2 TPS65988EVM Solder

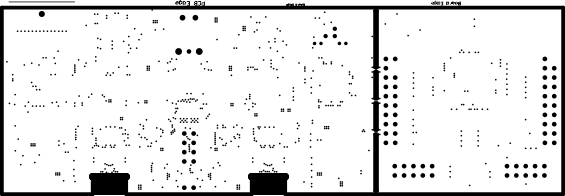

Figure 10-3 TPS65988EVM Top Layer SSTXRX1

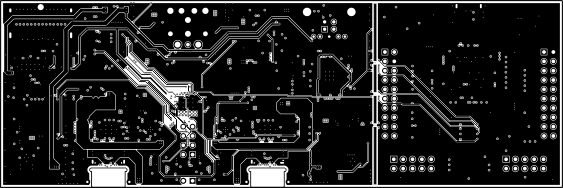

Figure 10-4 TPS65988EVM GND Plane 1
Figure 10-5 TPS65988EVM High Speed
Figure 10-6 TPS65988EVM GND Plane 2
Figure 10-7 TPS65988EVM Power 1
Figure 10-8 TPS65988EVM Power 2
Figure 10-9 TPS65988EVM GND Plane 3
Figure 10-10 TPS65988EVM SSTXRX2
Figure 10-11 TPS65988EVM Solder Mask
Figure 10-12 TPS65988EVM Bottom Layer Component View
