5.1.9 USB Type B Connector (J11)

J11 is the Type-B connection to the PC for testing USB 2.0 or USB 3.0 functionality. A Type-A to Type-B cable can be used to connect the EVM to the USB port on a computer. This connector provides the USB data to the USB HUB on the TPS65988EVM. Figure 5-20 through Figure 5-22 highlight these features.

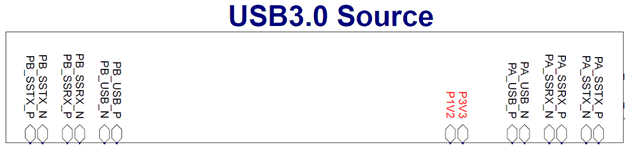

GUID-30795589-F6A8-49B2-A101-69CD190C9783-low.gifFigure 5-20 USB Type-B Receptacle (J11) Schematic
GUID-DB53D053-8402-4897-B43F-9E33E8A8B3C9-low.gifFigure 5-21 USB (J11) Block Diagram
GUID-6095225F-99DF-472D-8199-530F47D293C8-low.gif Figure 5-22 USB Type-B Receptacle (J11)
