7 PCB Layout

Figure 7-1 through Figure 7-8 show the PCB layers for both the TPSM41625EVM and TPSM41615EVM.

Figure 7-1 Topside Component Layout (Top View)

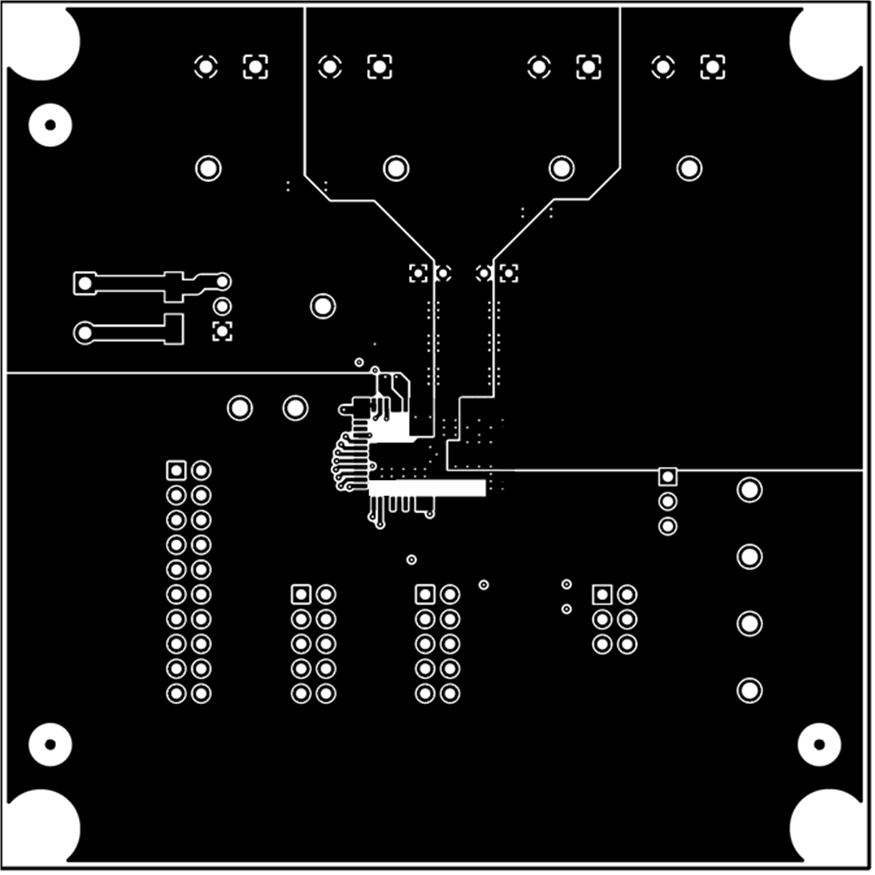

Figure 7-2 Layer 1 (Top View)

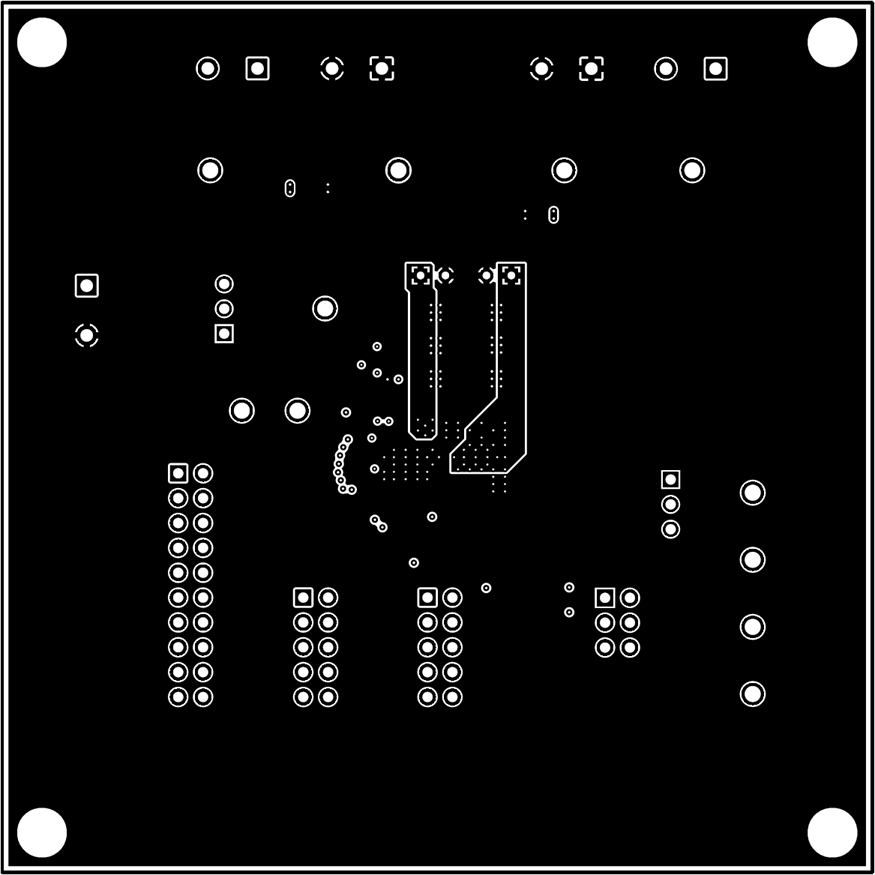

Figure 7-3 Layer 2 (Top View)

Figure 7-4 Layer 3 (Top View)

Figure 7-5 Layer 4 (Top View)

Figure 7-6 Layer 5 (Top View)

Figure 7-7 Layer 6 (Top View)

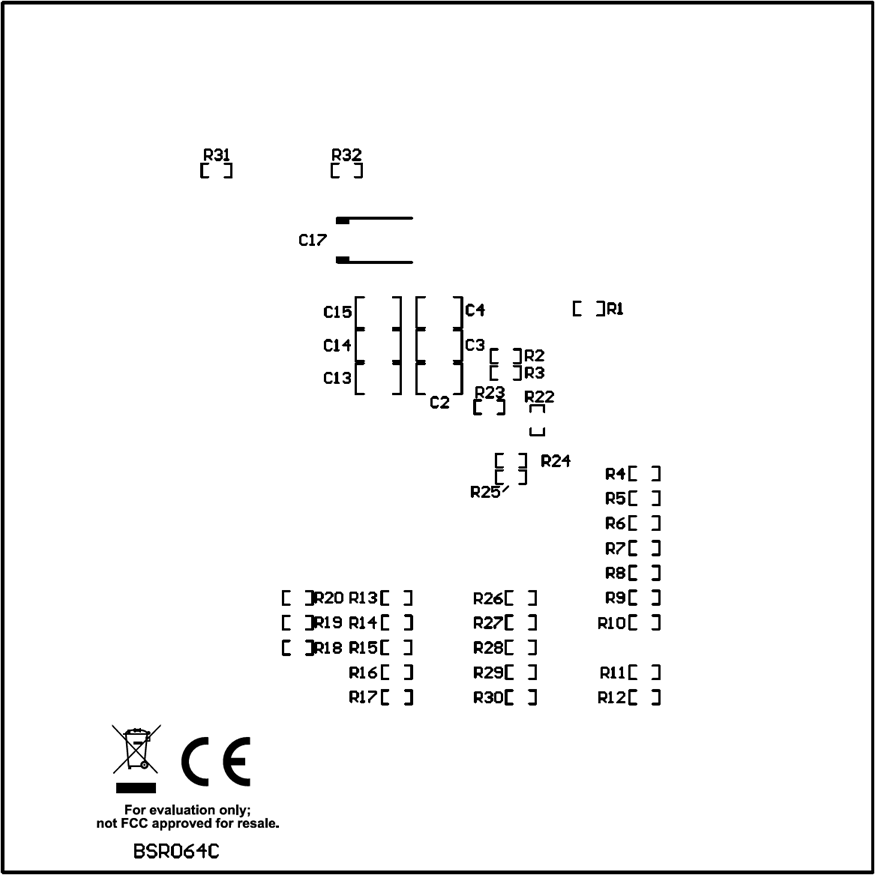

Figure 7-8 Bottom-Side Component Layout (Bottom View)
