7.7 Typical Characteristics

at TA = 25°C, VS = 5 V, and VIN+ = 12 V (unless otherwise noted)

VIN+ = 0 V

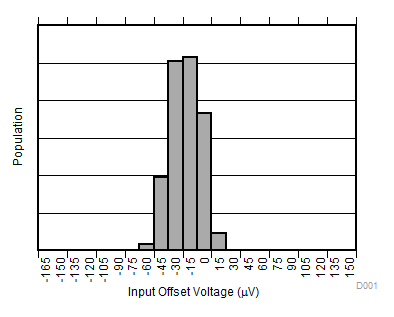

Figure 7-1 Input Offset Voltage Production Distribution A1
VIN+ = 0 V
Figure 7-3 Input Offset Voltage Production Distribution A3
VIN+ = 0 V
Figure 7-5 Offset Voltage vs. Temperature
Figure 7-7 Common-Mode Rejection Production Distribution A2
Figure 7-9 Common-Mode Rejection Production Distribution A4
Figure 7-11 Gain Error Production Distribution A1
Figure 7-13 Gain Error Production Distribution A3
Figure 7-15 Gain Error vs. Temperature

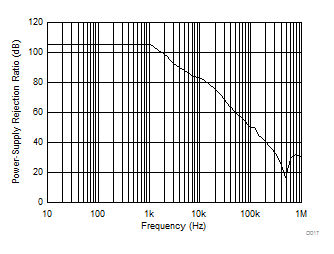

Figure 7-17 Power-Supply Rejection Ratio vs. Frequency
Figure 7-19 Output Voltage Swing vs. Output Current
Supply voltage = 0 V
Figure 7-21 Input Bias Current vs. Common-Mode Voltage (Both Inputs, Shutdown)
Figure 7-23 Quiescent Current vs. Temperature (INA180-Q1)
Figure 7-25 Quiescent Current vs. Temperature (INA4180-Q1)
Figure 7-27 Quiescent Current vs. Common-Mode Voltage for All Amplifiers (INA2180-Q1)
Figure 7-29 Input-Referred Voltage Noise vs. Frequency (A3 Devices)
80-mVPP input step
Figure 7-31 Step Response

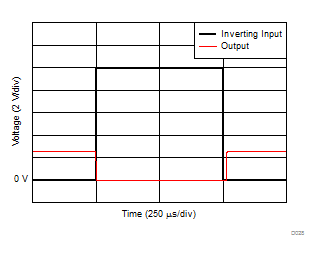

Figure 7-33 Inverting Differential Input Overload
Figure 7-35 Start-Up Response
Figure 7-37 Output Impedance vs. Frequency
VIN+ = 0 V

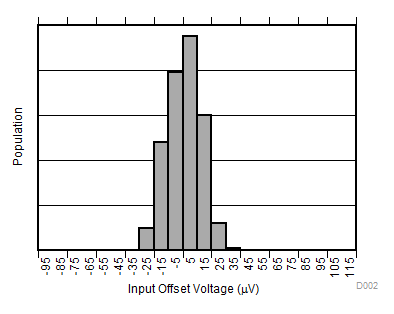

Figure 7-2 Input Offset Voltage Production Distribution A2
VIN+ = 0 V
Figure 7-4 Input Offset Voltage Production Distribution A4

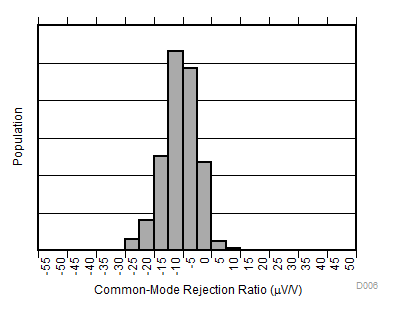

Figure 7-6 Common-Mode Rejection Production Distribution A1
Figure 7-8 Common-Mode Rejection Production Distribution A3
Figure 7-10 Common-Mode Rejection Ratio vs. Temperature
Figure 7-12 Gain Error Production Distribution A2
Figure 7-14 Gain Error Production Distribution A4

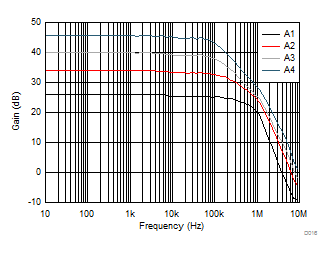

Figure 7-16 Gain vs. Frequency
Figure 7-18 Common-Mode Rejection Ratio vs. Frequency
Supply voltage = 5 V
Figure 7-20 Input Bias Current vs. Common-Mode Voltage
Figure 7-22 Input Bias Current vs. Temperature
Figure 7-24 Quiescent Current vs. Temperature (INA2180-Q1)
Figure 7-26 Quiescent Current vs. Common-Mode Voltage (INA180-Q1)
Figure 7-28 Quiescent Current vs. Common-Mode Voltage for All Amplifiers (INA4180-Q1)
Figure 7-30 0.1-Hz to 10-Hz Voltage Noise (Referred-to-Input)
Figure 7-32 Common-Mode Voltage Transient Response
Figure 7-34 Noninverting Differential Input Overload

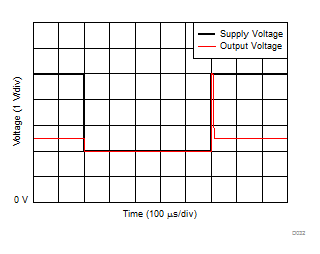

Figure 7-36 Brownout Recovery
Figure 7-38 Channel Separation vs. Frequency (INA2180)
