5 Board Layout

This section provides the EVM board layout and illustrations in Figure 5-1 through Figure 5-6. The Gerbers are available on the EVM product page.

GUID-20210106-CA0I-GXSK-PX8S-HPJTC57JRB1X-low.gif Figure 5-1 Top Assembly

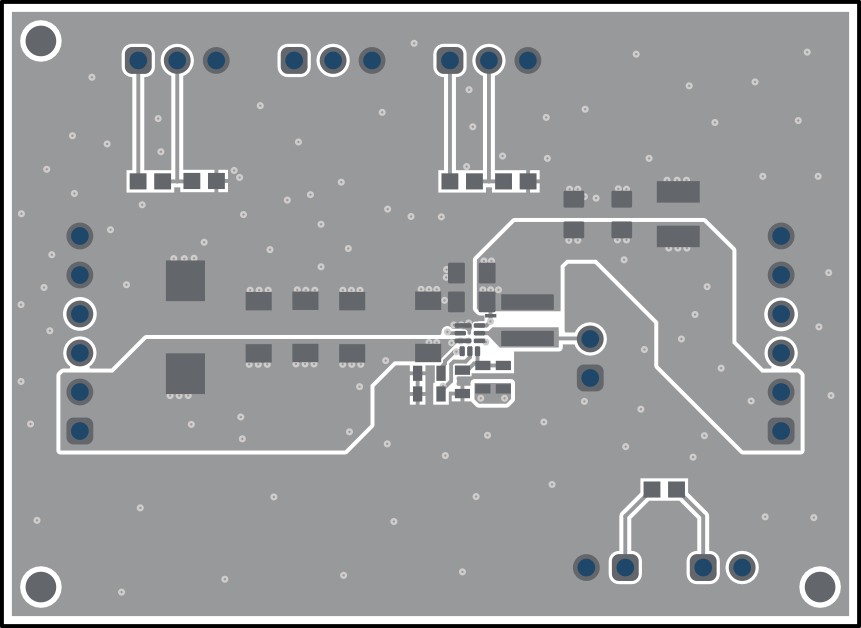

GUID-20210106-CA0I-VNDZ-N0LZ-Z4RQVQQXRJ6M-low.gif Figure 5-2 Top Layer

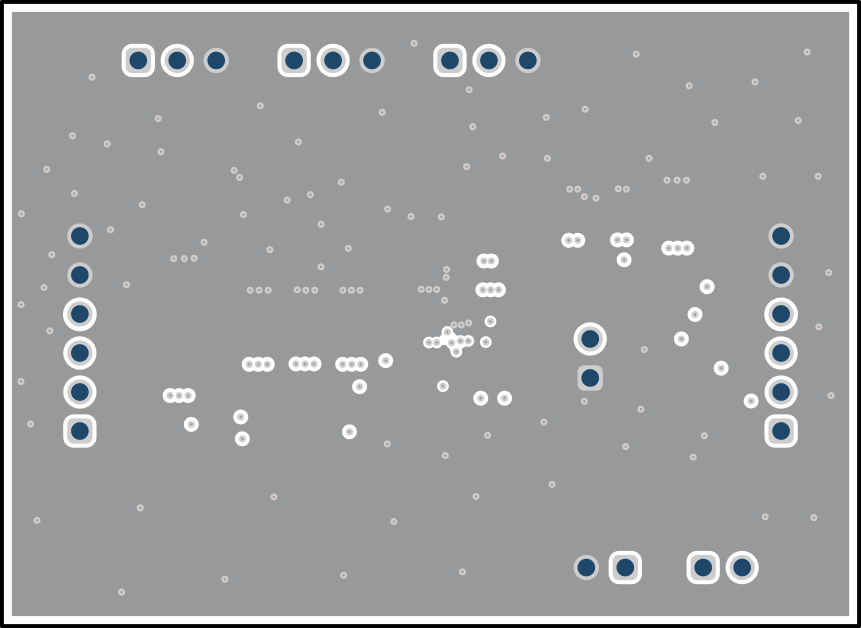

GUID-20210106-CA0I-FP8F-F0WT-9PGMRDXWTD7R-low.gif Figure 5-3 Internal Layer 1
GUID-20210106-CA0I-9ZRJ-HZLF-BMX3X78WBC3C-low.gif Figure 5-4 Internal Layer 2

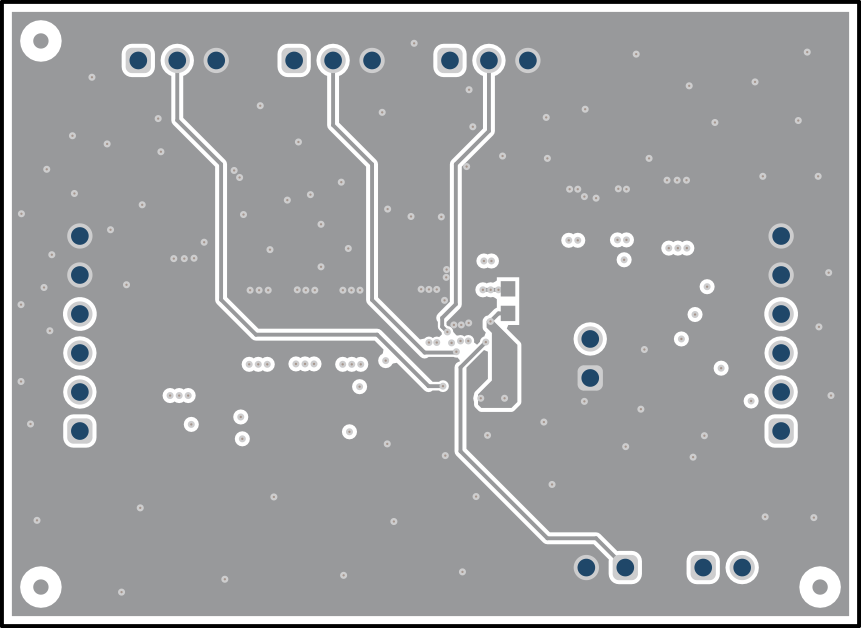

GUID-20210106-CA0I-SG2B-HSDC-HPP15CDPJFFF-low.gif Figure 5-5 Bottom Layer
GUID-20210106-CA0I-LFNX-QVBG-BXTJ6H2G4RXN-low.gif Figure 5-6 Bottom Layer (Mirrored)
