4 Test Results

The TPS6290xEVM-069 was used to take all the data in the TPS62903, 3-V to 17-V, Low IQ Buck Converter in 1.5 mm × 2 mm QFN Package data sheet. See the device data sheet for the performance of this EVM.

Figure 4-1 shows the thermal performance of the EVM. "Spot" shows the temperature of the PCB. Figure 4-2 shows the loop response measurement.

GUID-20210106-CA0I-6471-MWTQ-2M9VJ94B0L5P-low.jpg Figure 4-1 Thermal Performance (VIN = 12 V, VOUT = 1.2 V, IOUT = 3000 mA, JP2 open)

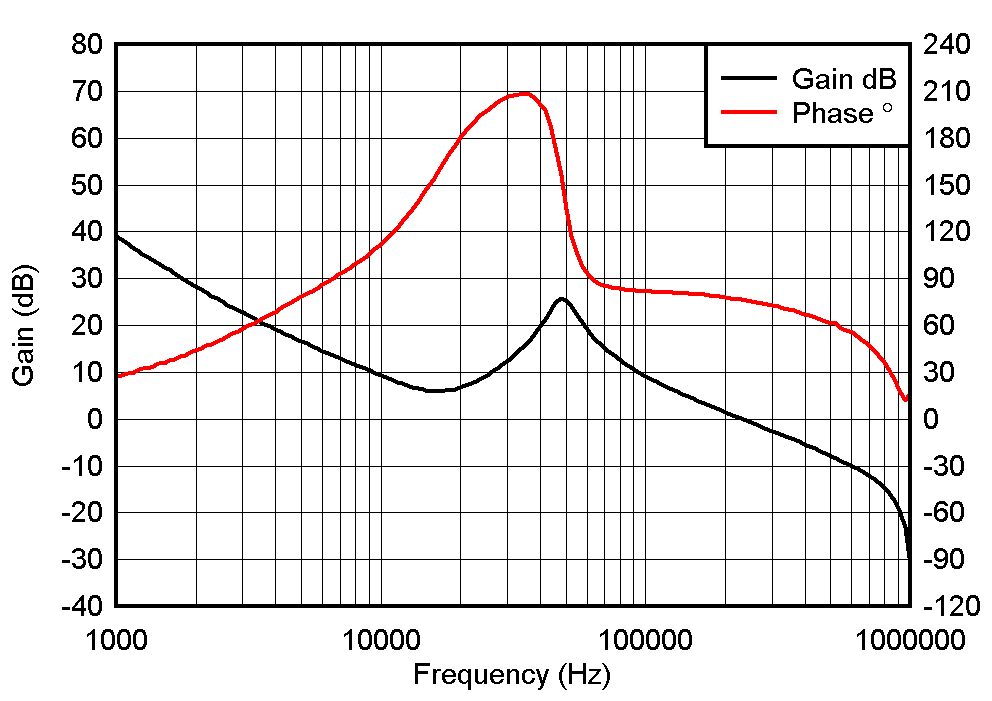

GUID-20210106-CA0I-LFDK-SHVB-N8GVHRXMHCPJ-low.gif Figure 4-2 Loop Response Measurement (VIN = 12 V, VOUT = 1.2 V, IOUT = 3000 mA, JP2 open)
