STSW-LINK004

You can use the STSW-LINK004 utility to flash the software when you have created the binary file through IAR or Keil.

To flash the software, do the following:

1. Open the file from the File drop-down menu.
2. Select the demonstration to load on the device. (This example uses SPPDemo.)
   • For NoOS, navigate to C:\TI\Connectivity\CC256XBT\CC256xSTM32BluetopiaSDK\v4.2.x.x\NoOS\STM3240G-EVAL\Samples\SPPDemo\NoOS\EWARM\Debug\Exe.
   • For FreeRTOS, navigate to C:\TI\Connectivity\CC256XBT\CC256xSTM32BluetopiaSDK\v4.2.x.x\FreeRTOS\STM3240G-EVAL\Samples\SPPDemo\FreeRTOS\EWARM\Debug\Exe.
3. Select a bin file. (This example uses SPPDemo.bin.)

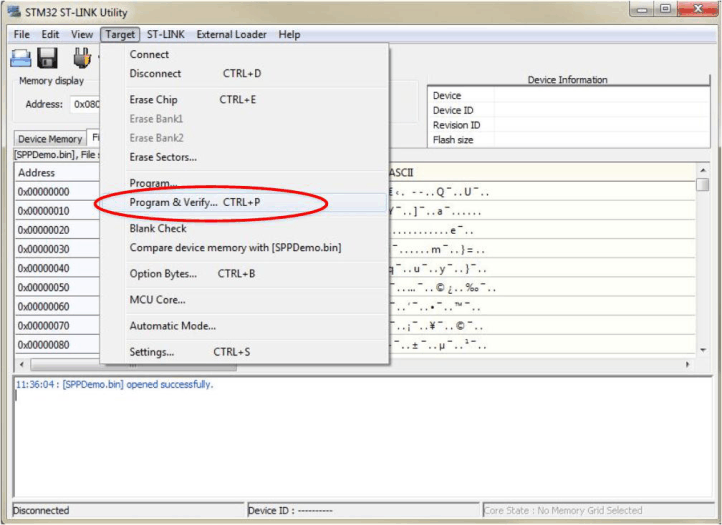

4. Click Program & Verify... from the Target drop-down menu. (See Figure 7-10.)
   Figure 7-10 Program and Verify
   Note: The information for your device shows.
5. Ensure the values in Device Information changed to your device information.

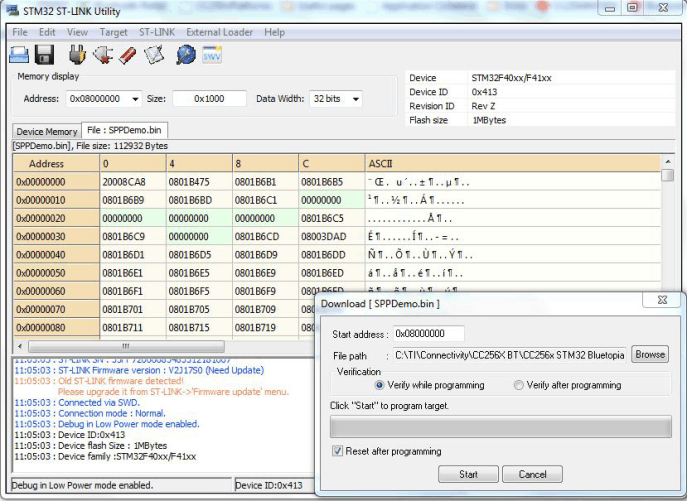

6. Press Start. (See Figure 7-11.)
   Figure 7-11 Start Download
   Note: The command window displays Verification...OK. (See Figure 7-12.)
   Figure 7-12 Verification...OK
