2.5 CANFD Connector

The CAN FD connector provides access to the CAN_FD interfaces (CAN_L and CAN_H signals) from the onboard CAND-FD transceiver. These signals can be directly wired to the CAN bus.

IWRL6432AOPEVM CANFD Connector Figure 2-18 CANFD Connector

The J3 connector shown in Figure 2-18 provides the CAN_L and CAN_H signals from the onboard CAND-FD transceivers (TCAN1042HGVDRQ1). These signals are wired to the CAN bus after muxing with the SPI interface signals; one of the two paths must be selected. CAN signals are selected to PHY by changing the switch S1.5 to off position.

IWRL6432AOPEVM Analog Mux for the CAN PHY Switch Figure 2-19 Analog Mux for the CAN PHY Switch

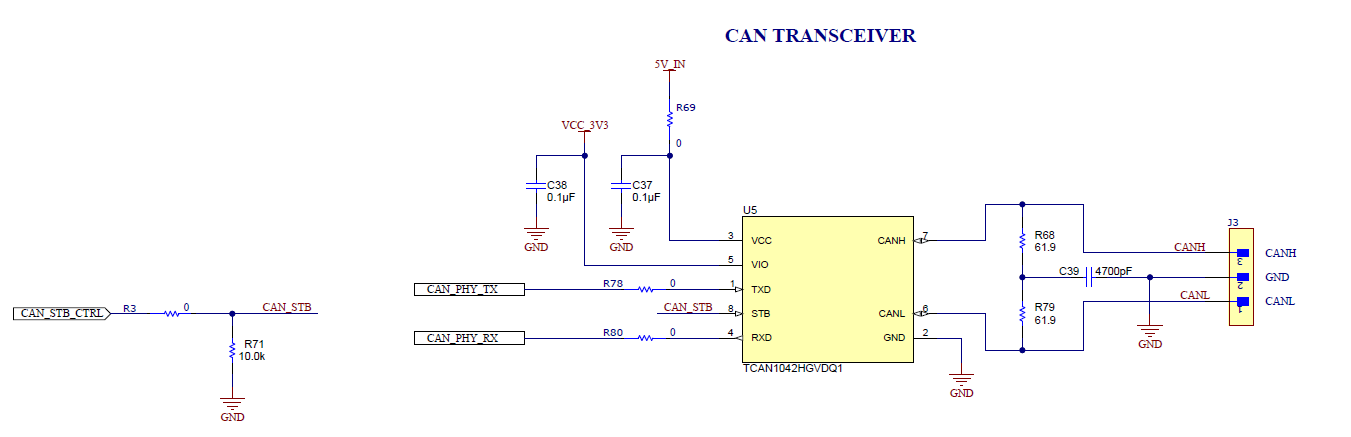

IWRL6432AOPEVM CAN FD PHY Used in the EVM Figure 2-20 CAN FD PHY Used in the EVM
