6.8 Typical Characteristics

at TA = 25°C, AVDD = 2.5 V, AVSS = –2.5 V, DVDD = 3.3 V, fCLK = 1.024 MHz, V(REFP) = 0 V, V(REFN) = –2.5 V, gain = 1, high-resolution and low-power modes, chop enabled, offset disabled, and fDATA = 1000 SPS (unless otherwise noted)
ADS1287 D005_SBAS778.gif
Shorted input, high-resolution mode,
gain = 1, 8192 points, SNR = 113.2 dB
Figure 8. Output Spectrum
ADS1287 D009_SBAS778.gif
Shorted input, chop disabled, high-resolution mode,
gain = 8, 8192 points, SNR = 111.3 dB
Figure 10. Output Spectrum
ADS1287 D008_SBAS778.gif
Shorted input, low-power mode, offset enabled,
gain = 8, 8192 points, SNR = 108.4 dB
Figure 12. Output Spectrum
ADS1287 D001_SBAS778.gif
fIN = 31.25 Hz, –0.5 dB, high-resolution mode,
gain = 1, 8192 points
Figure 14. Output Spectrum
ADS1287 D003_SBAS778.gif
fIN = 31.25 Hz, –0.5 dB, high-resolution mode,
gain = 8, 8192 points
Figure 16. Output Spectrum
ADS1287 D011_SBAS778.gif
fIN = 31.25 Hz, –0.5 dB, low-power mode,
gain = 1, 8192 points
Figure 18. Output Spectrum
ADS1287 D013_SBAS778.gif
fIN = 31.25 Hz, –0.5 dB, low-power mode,
gain = 8, 8192 points
Figure 20. Output Spectrum
ADS1287 D015_SBAS778.gif
High-resolution mode, VIN = –0.5 dB
Figure 22. THD vs Input Frequency
ADS1287 D017_SBAS778.gif
fIN = 31.25 Hz, –0.5 dB, high-resolution mode
Figure 24. THD vs Temperature
ADS1287 D019_SBAS778.gif
Shorted input, high-resolution mode
Figure 26. SNR vs Temperature
ADS1287 D027_SBAS778.gif
Shorted input
Figure 28. SNR vs Clock Frequency
ADS1287 D022_SBAS778.gif
Low-power mode
Figure 30. CMRR vs Frequency
ADS1287 D028_SBAS778.gif
Chop enabled, gain = 1, high-resolution mode
Figure 32. Input Current vs Input Voltage
ADS1287 D034_SBAS778.gif
Chop enabled, gain = 1, 30 units
Figure 34. Offset Error Histogram
ADS1287 D035_SBAS778.gif
Offset enabled (50 mV), low-power mode,
gain = 1, 30 units
Figure 36. Offset Error Histogram
ADS1287 D031_SBAS778.gif
Gain = 1, 30 units
Figure 38. Gain Error Histogram
ADS1287 D030_SBAS778.gif
Gain = 2, 4, 8, 16 match to gain = 1;
30 units
Figure 40. Gain Match Error Histogram
ADS1287 D024_SBAS778.gif
Figure 42. Analog Supply Current vs Temperature
ADS1287 D006_SBAS778.gif
Shorted input, high-resolution mode,
gain = 8, 8192 points, SNR = 111.8 dB
Figure 9. Output Spectrum
ADS1287 D007_SBAS778.gif
Shorted input, low-power mode, offset enabled,
gain = 1, 8192 points, SNR = 110.1 dB
Figure 11. Output Spectrum
ADS1287 D010_SBAS778.gif
Shorted input, low-power mode, chop disabled,
gain = 8, 8192 points, SNR = 108.0 dB
Figure 13. Output Spectrum
ADS1287 D002_SBAS778.gif
fIN = 31.25 Hz, –20 dB, high-resolution mode,
gain = 1, 8192 points
Figure 15. Output Spectrum
ADS1287 D004_SBAS778.gif
fIN = 31.25 Hz, –20 dB, high-resolution mode,
gain = 8, 8192 points
Figure 17. Output Spectrum
ADS1287 D012_SBAS778.gif
fIN = 31.25 Hz, –20 dB, low-power mode,
gain = 1, 8192 points
Figure 19. Output Spectrum
ADS1287 D014_SBAS778.gif
fIN = 31.25 Hz, –20 dB, low-power mode,
gain = 8, 8192 points
Figure 21. Output Spectrum
ADS1287 D016_SBAS778.gif
Low-power mode, VIN = –0.5 dB
Figure 23. THD vs Input Frequency
ADS1287 D018_SBAS778.gif
fIN = 31.25 Hz, –0.5 dB, low-power mode
Figure 25. THD vs Temperature
ADS1287 D020_SBAS778.gif
Shorted input, low-power mode
Figure 27. SNR vs Temperature
ADS1287 D021_SBAS778.gif
High-resolution mode
Figure 29. CMRR vs Frequency
ADS1287 D023_SBAS778.gif
Figure 31. Analog Supply PSRR vs Frequency
ADS1287 D029_SBAS778.gif
Chop disabled, gain = 1, high-resolution mode
Figure 33. Input Current vs Input Voltage
ADS1287 D033_SBAS778.gif
Chop disabled, gain = 1, 30 units
Figure 35. Offset Error Histogram
ADS1287 D036_SBAS778.gif
Chop enabled, gain = 1, 30 units
Figure 37. Offset Temperature Drift Histogram

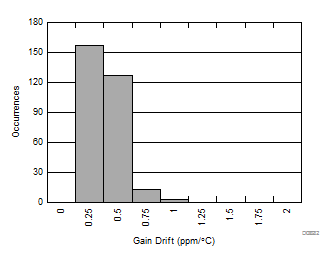

ADS1287 D032_SBAS778.gif
Gain = 1, 2, 4, 8 and 16 combined; 30 units;
combined high-resolution and low-power modes
Figure 39. Gain Drift Histogram
ADS1287 D025_SBAS778.gif
Figure 41. Reference Input Impedance vs Temperature
ADS1287 D026_SBAS778.gif
High-resolution mode
Figure 43. Digital Supply Current vs Temperature
