7.8 Typical Characteristics, BTL Configuration, AD-mode

All Measurements taken at audio frequency = 1 kHz, PVDD_X = 30 V, VDD = 5 V, GVDD = 5 V, RL = 4 Ω, fS = 480 kHz, TA = 25°C, Output Filter: LDEM = 10 μH, CDEM = 1 µF, AD Modulation, AES17 + AUX-0025 measurement filters, unless otherwise noted.

TPA3220 D001_SLASEN3.gif
RL = 3 Ω, 4 Ω, 8 Ω TA = 25°C
Figure 1. Total Harmonic Distortion + Noise vs Output Power, AD-mode
TPA3220 D003_SLASEN3.gif
RL =4 Ω P = 1W, 10W, 40W
AUX-0025 filter, 80 kHz analyzer BW TA = 25°C
Figure 3. Total Harmonic Distortion+Noise vs Frequency, AD-mode

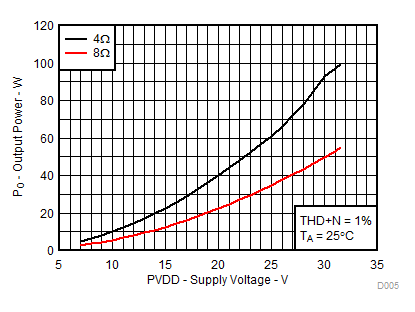

TPA3220 D005_SLASEN3.gif
A.
RL = 4 Ω, 8 Ω THD+N = 1%
Figure 5. Output Power vs Supply Voltage, AD-mode
TPA3220 D007_SLASEN3.gif
RL = 4 Ω, 8 Ω PVDD = 24V
Figure 7. System Efficiency vs Output Power, AD-mode
TPA3220 D009_SLASEN3.gif
RL = 4 Ω, 8 Ω
Figure 9. System Power Loss vs Output Power, AD-mode
TPA3220 D011_SLASEE9.gif
A.
RL = 4 Ω
Figure 11. Noise Amplitude vs Frequency, AD-mode
TPA3220 D013_SLASEE9.gif
1.
Figure 13. CCIF Intermodulation, AD-Mode, 25 W
TPA3220 D026_SLASEN3.gif
1.
Figure 15. Idle Current vs Supply Voltage, AD vs HEAD
TPA3220 D002_SLASEN3.gif
RL = 4 Ω P = 1W, 10W, 40W TA = 25°C
Figure 2. Total Harmonic Distortion+Noise vs Frequency, AD-mode
TPA3220 D004_SLASEN3.gif
RL = 4 Ω, 8 Ω THD+N = 10%
Figure 4. Output Power vs Supply Voltage, AD-mode
TPA3220 D006_SLASEN3.gif
A.
RL = 4 Ω, 8 Ω PVDD = 30V
Figure 6. System Efficiency vs Output Power, AD-mode
TPA3220 D008_SLASEN3.gif
RL = 4 Ω, 8 Ω PVDD = 12V
Figure 8. System Efficiency vs Output Power, AD-mode
TPA3220 D010_SLASEN3.gif
A.
RL = 4 Ω, 8 Ω
Figure 10. Output Power vs Ambient Temperature, AD-mode
TPA3220 D012_SLASEE9.gif
18 kHz + 19 kHz Ratio 1 : 1
Figure 12. CCIF Intermodulation, AD-mode, 1 W
TPA3220 D015_SLASEN3.gif
1.
Figure 14. Channel-to-Channel Crosstalk vs Frequency, AD-mode
TPA3220 D027_4_SLASEN3.gif
1.
Figure 16. Efficiency vs Output Power, AD vs HEAD
