8.5.2 Data Format

The device provides 16 bits of data in binary twos complement format. The size of one code (LSB) is calculated using Equation 16.

Equation 16. 1 LSB = (2 · VREF / Gain) / 216 = FS / 215

A positive full-scale input [VIN ≥ (+FS – 1 LSB) = (VREF / Gain – 1 LSB)] produces an output code of 7FFFh and a negative full-scale input (VIN ≤ –FS = –VREF / Gain) produces an output code of 8000h. The output clips at these codes for signals that exceed full-scale.

Table 9 summarizes the ideal output codes for different input signals.

Table 9. Ideal Output Code versus Input Signal

INPUT SIGNAL
VIN = (V(AINP) – V(AINN))		 IDEAL OUTPUT CODE(1)
≥ +FS (215 – 1) / 215 7FFFh
+FS / 215 0001h
0 0000h
–FS / 215 FFFFh
≤ –FS 8000h
(1) Excludes the effects of noise, INL, offset, and gain errors.

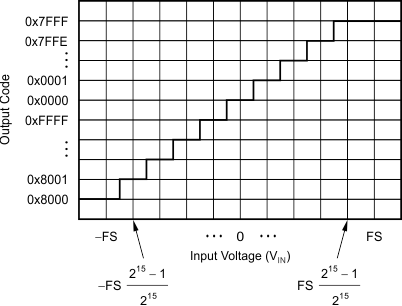

Mapping of the analog input signal to the output codes is shown in Figure 60.

ADS1120-Q1 ai_code_transition_bas683.gifFigure 60. Code Transition Diagram
