5.7 Typical Characteristics

Data at high and low temperatures are applicable only within the recommended operating free-air temperature ranges of the various devices.

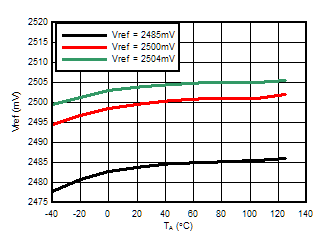

ATL431 ATL432 Reference Voltage vs Free-Air Temperature
IKA=1mA
Figure 5-1 Reference Voltage vs Free-Air Temperature

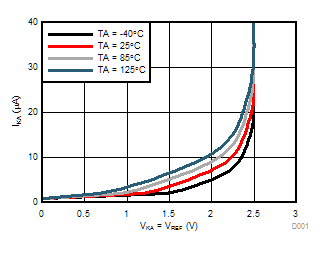

ATL431 ATL432 Cathode Current vs Cathode Voltage
Figure 5-3 Cathode Current vs Cathode Voltage

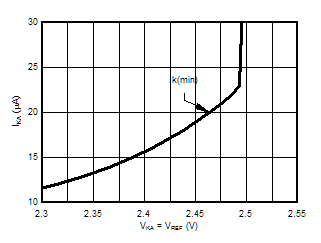

ATL431 ATL432 Cathode Current vs Cathode Voltage
Figure 5-5 Cathode Current vs Cathode Voltage
ATL431 ATL432 Delta Reference Voltage vs Cathode Voltage
IKA=1mA
Figure 5-7 Delta Reference Voltage vs Cathode Voltage

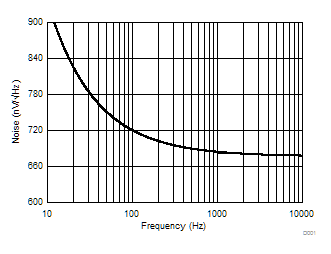

ATL431 ATL432 Noise Voltage
IKA = 1mA
Figure 5-9 Noise Voltage

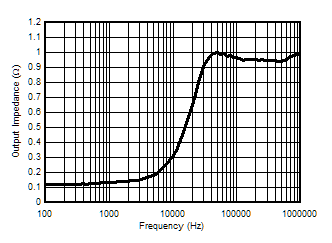

ATL431 ATL432 Output Impedance vs Frequency
Figure 6-5 used for this measurement.
Figure 5-11 Output Impedance vs Frequency
ATL431 ATL432 Pulse Response
IKA = 100µAFigure 6-7 used for this measurement.
Figure 5-13 Pulse Response

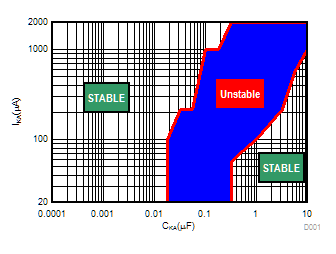

ATL431 ATL432 Low IKA (VKA = 5.0V) Stability Boundary Conditions All ATL43xx Devices
ESR < 20mΩFigure 6-6 used to verify stability.
Figure 5-15 Low IKA (VKA = 5.0V) Stability Boundary Conditions All ATL43xx Devices

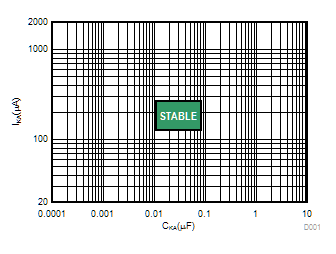

ATL431 ATL432 Low IKA (VKA = 15.0V) Stability Boundary Conditions All ATL43xx Devices
ESR < 20mΩFigure 6-6 used to verify stability.
Figure 5-17 Low IKA (VKA = 15.0V) Stability Boundary Conditions All ATL43xx Devices

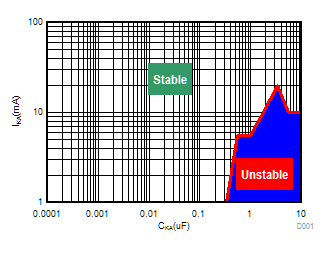

ATL431 ATL432 High IKA (VKA = 5.0V) Stability Boundary Conditions All ATL43xx Devices
ESR < 20mΩFigure 6-6 used to verify stability.
Figure 5-19 High IKA (VKA = 5.0V) Stability Boundary Conditions All ATL43xx Devices

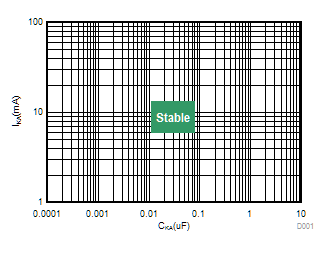

ATL431 ATL432 High IKA (VKA = 15.0V) Stability Boundary Conditions All ATL43xx Devices
ESR < 20mΩFigure 6-6 used to verify stability.
Figure 5-21 High IKA (VKA = 15.0V) Stability Boundary Conditions All ATL43xx Devices
ATL431 ATL432 Reference Current vs Free-Air Temperature
Figure 5-2 Reference Current vs Free-Air Temperature

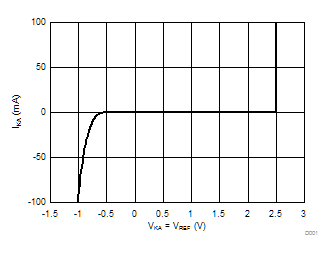

ATL431 ATL432 Cathode Current vs Cathode Voltage
Figure 5-4 Cathode Current vs Cathode Voltage

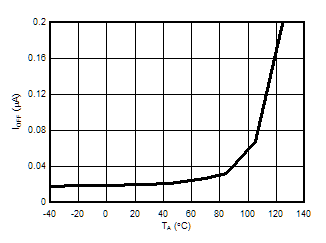

ATL431 ATL432 Off-State Cathode Current vs Free-Air Temperature
Figure 5-6 Off-State Cathode Current vs Free-Air Temperature

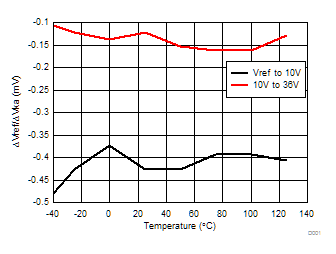

ATL431 ATL432 Delta Reference Voltage vs Cathode Voltage
IKA=1mA
Figure 5-8 Delta Reference Voltage vs Cathode Voltage
ATL431 ATL432 Small-Signal Voltage Amplification vs Frequency
Figure 6-4 used for this measurement.IKA=1mA
Figure 5-10 Small-Signal Voltage Amplification vs Frequency

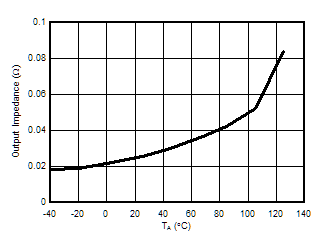

ATL431 ATL432 DC Output Impedance vs Temperature
Figure 6-5 used for this measurement.
Figure 5-12 DC Output Impedance vs Temperature
ATL431 ATL432 Low IKA (VKA = 2.5V) Stability Boundary Conditions All ATL43xx Devices
ESR < 20mΩFigure 6-6 used to verify stability.
Figure 5-14 Low IKA (VKA = 2.5V) Stability Boundary Conditions All ATL43xx Devices
ATL431 ATL432 Low IKA (VKA = 10.0V) Stability Boundary Conditions All ATL43xx Devices
ESR < 20mΩFigure 6-6 used to verify stability.
Figure 5-16 Low IKA (VKA = 10.0V) Stability Boundary Conditions All ATL43xx Devices

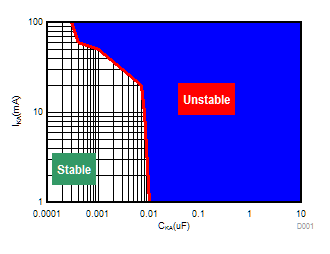

ATL431 ATL432 High IKA (VKA = 2.5V) Stability Boundary Conditions All ATL43xx Devices
ESR < 20mΩFigure 6-6 used to verify stability.
Figure 5-18 High IKA (VKA = 2.5V) Stability Boundary Conditions All ATL43xx Devices

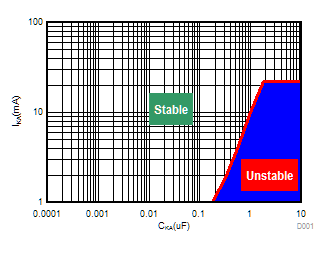

ATL431 ATL432 High IKA (VKA = 10.0V) Stability Boundary Conditions All ATL43xx Devices
ESR < 20mΩFigure 6-6 used to verify stability.
Figure 5-20 High IKA (VKA = 10.0V) Stability Boundary Conditions All ATL43xx Devices
