7.19.4 RX Performance

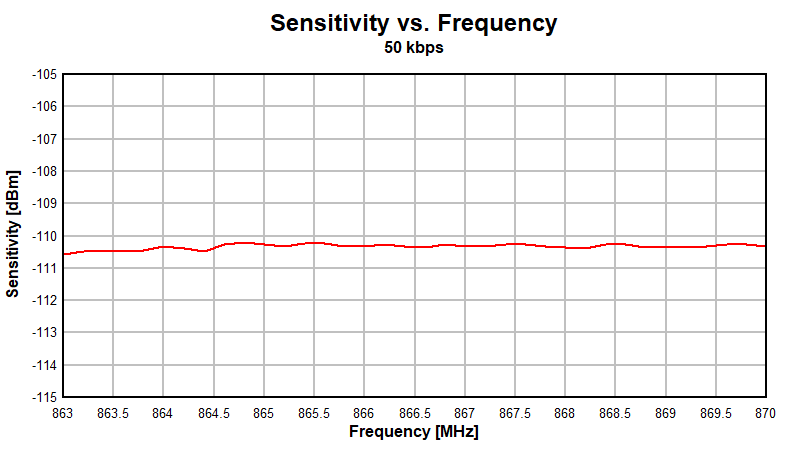

CC1311R3 Sensitivity vs Frequency (50kbps, 868MHz)
Figure 7-11 Sensitivity vs Frequency (50kbps, 868MHz)
CC1311R3 Sensitivity vs Temperature (50kbps, 868.3MHz)
Figure 7-13 Sensitivity vs Temperature (50kbps, 868.3MHz)

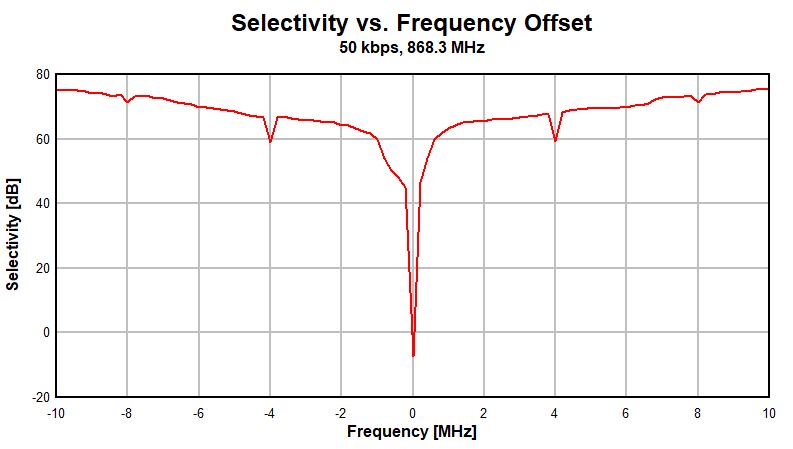

CC1311R3 Selectivity vs Frequency Offset (50kbps, 868.3MHz)
Figure 7-15 Selectivity vs Frequency Offset (50kbps, 868.3MHz)
CC1311R3 802.15.4, 50kbps, ±25kHz Deviation, 2-GFSK, 100kHz RX BandwidthFigure 7-17 802.15.4, 50kbps, ±25kHz Deviation, 2-GFSK, 100kHz RX Bandwidth

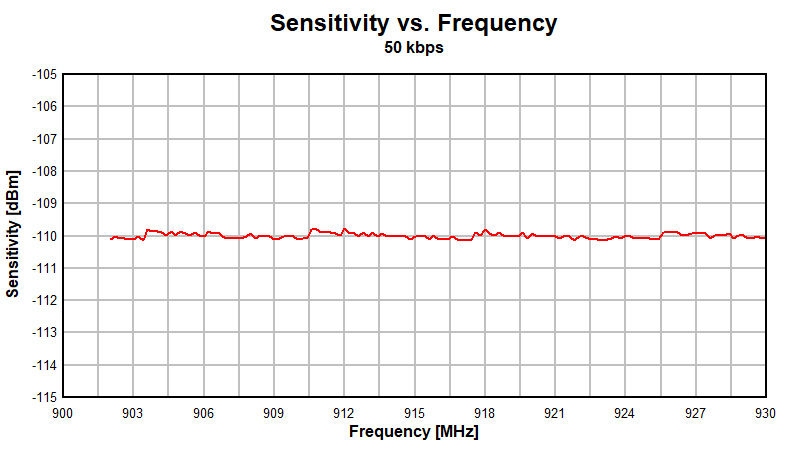

CC1311R3 Sensitivity vs Frequency (50kbps, 915MHz)
Figure 7-12 Sensitivity vs Frequency (50kbps, 915MHz)
CC1311R3 Sensitivity vs Supply Voltage (VDDS) (50kbps, 868.3MHz)
Figure 7-14 Sensitivity vs Supply Voltage (VDDS) (50kbps, 868.3MHz)
CC1311R3 PER vs Level vs Frequency (SimpleLink™ Long Range 5kbps, 868MHz)Figure 7-16 PER vs Level vs Frequency (SimpleLink™ Long Range 5kbps, 868MHz)
CC1311R3 Narrowband, 9.6kbps ±2.4kHz Deviation, 2-GFSK, 868MHz, 17.1kHz RX BandwidthFigure 7-18 Narrowband, 9.6kbps ±2.4kHz Deviation, 2-GFSK, 868MHz, 17.1kHz RX Bandwidth
