8.22.4 RX Performance

GUID-1FC91263-693E-4FA8-B0BB-C606D16AC393-low.gifFigure 8-12 Sensitivity vs.
Frequency (50 kbps, 868 MHz)
GUID-46EB9F1B-FAD1-4464-9EB8-05398F907181-low.gifFigure 8-13 Sensitivity vs.
Frequency (50 kbps, 915 MHz)

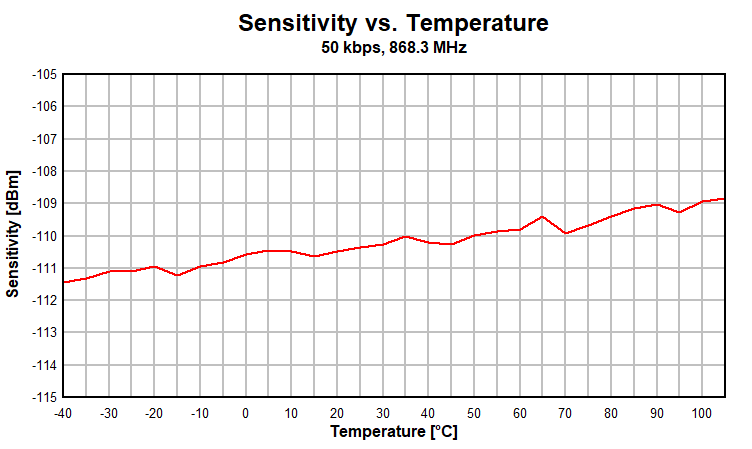

GUID-4761CE9A-BE2F-44D6-A4AC-28C8BCB447BD-low.gifFigure 8-14 Sensitivity vs.
Temperature (50 kbps, 868.3 MHz)
GUID-B1B6031B-06FF-4F08-A772-173443EA44A0-low.gifFigure 8-15 Sensitivity vs.
Supply Voltage (VDDS) (50 kbps, 868.3 MHz)

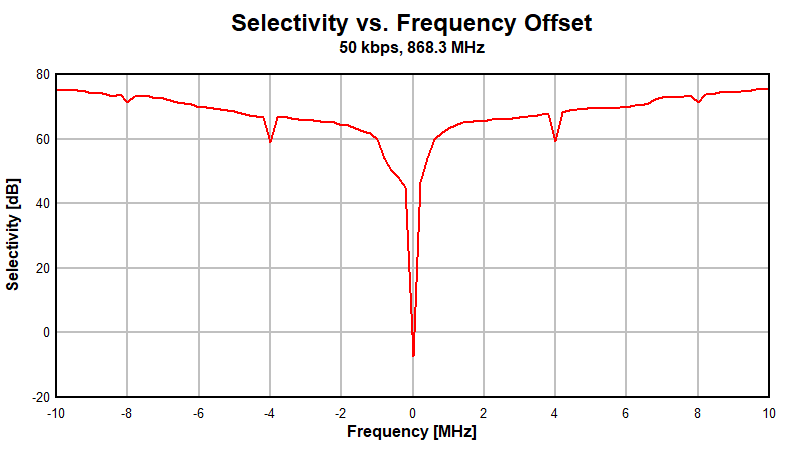

GUID-855D4E8F-4C65-484F-9116-FF68808568F7-low.gifFigure 8-16 Selectivity vs.
Frequency Offset (50 kbps, 868.3 MHz)
GUID-BFECCFC0-B926-43BB-964F-FD78C4AF0571-low.pngFigure 8-17 PER vs. Level vs.
Frequency (SimpleLink™ Long Range 5 kbps, 868 MHz)
GUID-20200923-CA0I-XWJG-PRB8-W2B89GL4LZSV-low.pngFigure 8-18 Narrowband, 9.6 kbps ±2.4 kHz deviation, 2-GFSK, 868 MHz, 17.1 kHz RX Bandwidth
GUID-20200923-CA0I-V356-1QWR-SGZZ3KBQM2RK-low.pngFigure 8-19 Narrowband, 4.8 kbps ±2 kHz deviation, 2-GFSK, 426.1 MHz, 10.1 kHz RX Bandwidth
GUID-20200923-CA0I-CVS3-MNZ3-9SSJDQK2W00Q-low.pngFigure 8-20 Narrowband, WMBUS N-MODE, 2.4 kbps, 169 MHz
