11 Layout

11.1 Layout Guidelines

Analog channels inputs and outputs should be routed to optimize system requirements. VCC and VEE should have local decoupling capacitance placed close to device. Typical Cin values are 100 pF and 0.01 uF per supply pin.

11.2 Layout Example

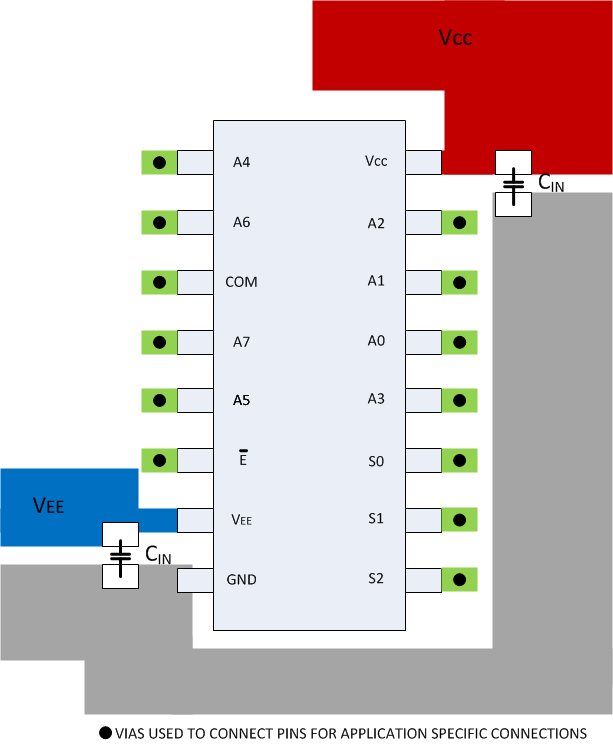

Layout_example_cd4051.gifFigure 14. Layout Example
