SLPS612 Data sheet

SLPS612B October 2016 – February 2022 CSD13385F5

PRODUCTION DATA

5.3 Typical MOSFET Characteristics

T_A = 25°C (unless otherwise stated)

Figure 5-1 Saturation Characteristics

Figure 5-3 Transient Thermal Impedance

	V_DS = 5 V

Figure 5-2 Transfer Characteristics

I_D = 0.9 A		V_DS = 6 V

Figure 5-4 Gate Charge

	I_D = 250 µA

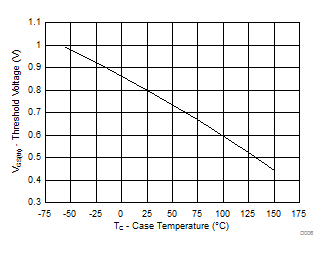

Figure 5-6 Threshold Voltage vs Temperature

	I_D = 0.9 A

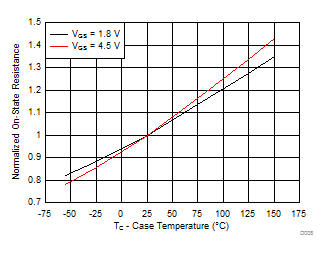

Figure 5-8 Normalized On-State Resistance vs Temperature

Single pulse, typical R_θJA = 290°C/W

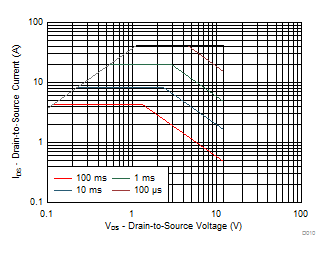

Figure 5-10 Maximum Safe Operating Area (SOA)

	Typical R_θJA = 245°C/W

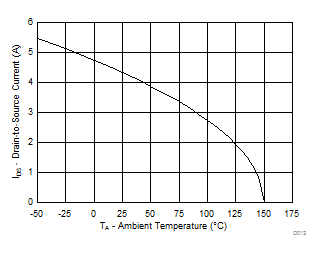

Figure 5-12 Maximum Drain Current vs Temperature

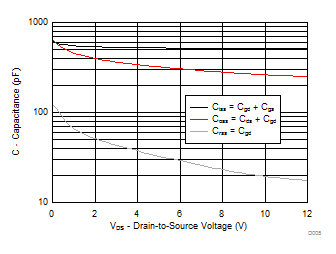

Figure 5-5 Capacitance

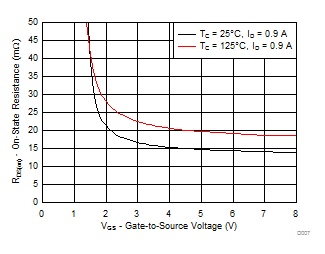

Figure 5-7 On-State Resistance vs Gate-to-Source Voltage

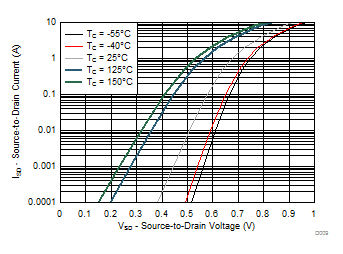

Figure 5-9 Typical Diode Forward Voltage

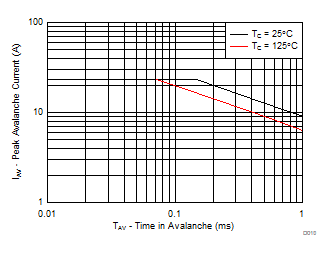

Figure 5-11 Single Pulse Unclamped Inductive Switching
