4.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Thermal Resistance Junction to Case(1) 4.5 °C/W
RθJA Thermal Resistance Junction to Ambient(1)(2) 55
(1) RθJC is determined with the device mounted on a 1 inch2 (6.45cm2), 2oz. (0.071mm thick) Cu pad on a 1.5 inch × 1.5 inch (3.81cm × 3.81cm), 0.06 inch (1.52mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 inch2 (6.45cm2), 2oz. (0.071mm thick) Cu.

CSD25310Q2

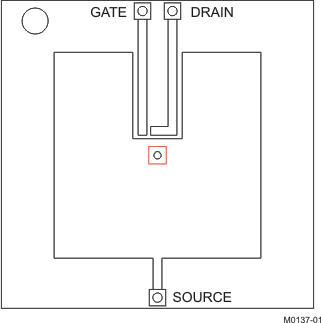

Max RθJA = 55 when mounted on 1 inch2 (6.45cm2) of 2oz. (0.071mm thick) Cu.
CSD25310Q2

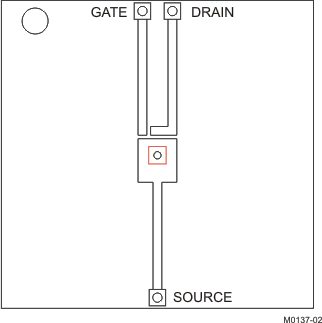

Max RθJA = 215 when mounted on minimum pad area of 2oz. (0.071mm thick) Cu.
