SLPS759 January   2023

PRODUCTION DATA

  1. 1Features
  2. 2Applications
  3. 3Description
  4. 4Revision History
  5. 5Device and Documentation Support
    1. 5.1 Documentation Support
      1. 5.1.1 Related Documentation
    2. 5.2 Receiving Notification of Documentation Updates
    3. 5.3 Support Resources
    4. 5.4 Trademarks
    5. 5.5 Electrostatic Discharge Caution
    6. 5.6 Glossary
  6. 6Mechanical, Packaging, and Orderable Information
    1. 6.1 Package Option Addendum
    2. 6.2 Tape and Reel Information
    3. 6.3 Mechanical Drawing
    4. 6.4 Recommended PCB Land Pattern
    5. 6.5 Recommended Stencil Opening
    6. 6.6 Alternate Industry Standard Compatible PCB Land Pattern
    7. 6.7 Alternate Industry Standard Compatible Stencil Opening

Package Options

Mechanical Data (Package|Pins)
  • RRB|41
Thermal pad, mechanical data (Package|Pins)

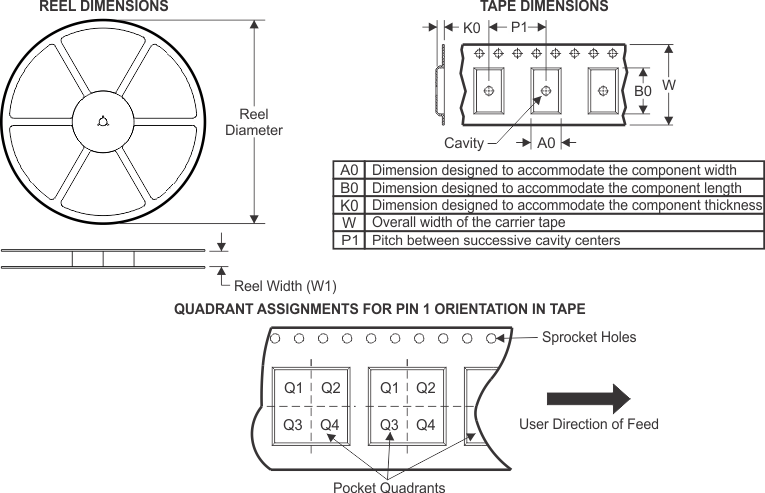

6.2 Tape and Reel Information

Device Package
Type		 Package Drawing Pins SPQ Reel
Diameter (mm)		 Reel
Width W1 (mm)		 A0
(mm)		 B0
(mm)		 K0
(mm)		 P1
(mm)		 W
(mm)		 Pin1
Quadrant
CSD95430RRB QFN RRB 41 2500 330 12.4 5.30 6.30 1.20 8.00 12.0 Q1
