Micromirror Array Optical Characteristics

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT
Micromirror tilt—half angle, variation device to device (1) 11 12 13 °
Axis of rotation with respect to system datums, variation device to device(2) 44 45 46 °
Image performance(3) Bright pixel(s) in active area(4) Gray 10 screen(5) 0 micromirrors
Bright pixel(s) in the POM(6) Gray 10 screen(5) 1
Dark pixel(s) in the active area(7) White screen 4
Adjacent pixel(s)(8) Any screen 0
Unstable pixel(s) in active area(9) Any screen 0
Limits on variability of micromirror tilt half angle are critical in the design of the accompanying optical system. Variations in tilt angle within a device may result in apparent non-uniformities, such as line pairing and image mottling, across the projected image. Variations in the average tilt angle between devices may result in colorimetry and system contrast variations. The specified limits represent the tolerances of the tilt angles within a device.
See Figure 6-9.
Conditions of acceptance: All DMD image quality returns are evaluated using the following projected image test conditions:
       Test set degamma should be linear.
       Test set brightness and contrast should be set to nominal.
       The diagonal size of the projected image should be a minimum of 20 inches.
       The projections screen should be 1X gain.
       The projected image should be inspected from a 38-inch minimum viewing distance.
       The image should be in focus during all image quality tests.
Bright pixel definition: A single pixel or mirror that is stuck in the ON position and is visibly brighter than the surrounding pixels
Gray 10 screen definition: All areas of the screen are colored with the following settings:
      Red = 10/255
      Green = 10/255
      Blue = 10/255
POM definition: Rectangular border of off-state mirrors surrounding the active area
Dark pixel definition: A single pixel or mirror that is stuck in the OFF position and is visibly darker than the surrounding pixels
Adjacent pixel definition: Two or more stuck pixels sharing a common border or common point, also referred to as a cluster
Unstable pixel definition: A single pixel or mirror that does not operate in sequence with parameters loaded into memory. The unstable pixel appears to be flickering asynchronously with the image.

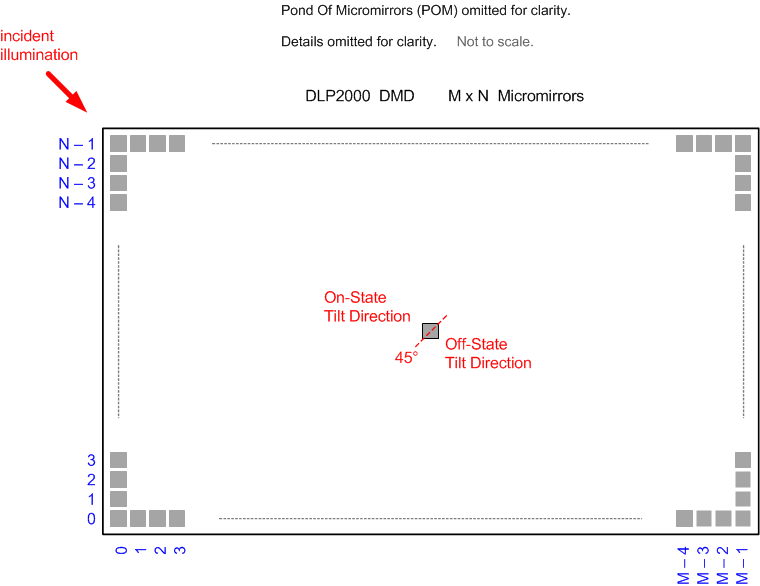

GUID-498CEAEA-6E12-416F-B3E1-C79AE7F2944A-low.gif Figure 6-9 Landed Pixel Orientation and Tilt

See Section 6.9 for M and N specifications.
