5.8 Timing Requirements

Over operating free-air temperature range and supply voltages (unless otherwise noted)
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
LVCMOS
trRise time(1)20% to 80% reference points25ns
tfFall time(1)80% to 20% reference points25ns
LOW SPEED INTERFACE (LSIF)
trRise time(2)20% to 80% reference points450ps
tfFall time(2)80% to 20% reference points450ps
tW(H)Pulse duration high(3)LS_CLK 50% to 50% reference points3.1ns
tW(L)Pulse duration low(3)LS_CLK 50% to 50% reference points3.1ns
tsuSetup time(4)LS_WDATA valid before rising edge of LS_CLK (differential)1.5ns
thHold time(4)LS_WDATA valid after rising edge of LS_CLK (differential)1.5ns
HIGH SPEED SERIAL INTERFACE (HSSI)
trRise time(5) - datafrom –A1 to A1 minimum eye height specification50115ps
Rise time(5) - clockfrom –A1 to A1 minimum eye height specification50135ps
tfFall time(5) - datafrom A1 to –A1 minimum eye height specification50115ps
Fall time(5) - clockfrom A1 to –A1 minimum eye height specification50135ps
tW(H)Pulse duration high(6)DCLK 50% to 50% reference points0.275ns
tW(L)Pulse duration low(6)DCLK 50% to 50% reference points0.275ns
(1) See Figure 5-10 for rise time and fall time for LVCMOS.
(2) See Figure 5-6 for rise time and fall time for LSIF.
(3) See Figure 5-5  for pulse duration high and low time for LSIF.
(4) See Figure 5-5  for setup and hold time for LSIF.
(5) See Figure 5-11  for rise time and fall time for HSSI.
(6) See  Figure 5-13 for pulse duration high and low for HSSI.
DLP472TE LSIF Waveform RequirementsFigure 5-4 LSIF Waveform Requirements
Equation 1. DLP472TE
Equation 2. DLP472TE

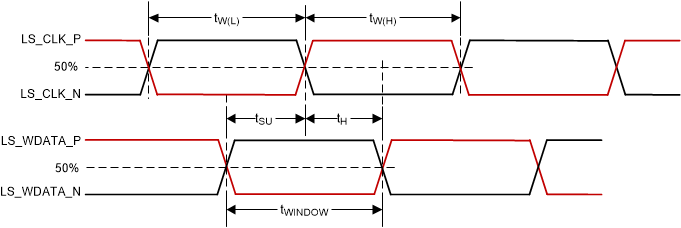

DLP472TE LSIF Timing RequirementsFigure 5-5 LSIF Timing Requirements

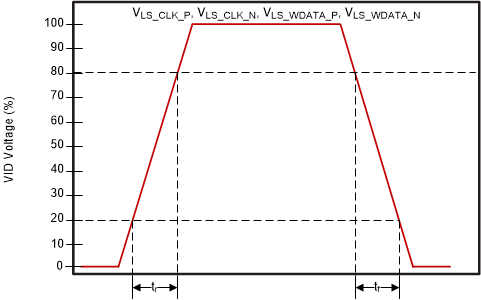

DLP472TE LSIF Rise, Fall Time SlewFigure 5-6 LSIF Rise, Fall Time Slew

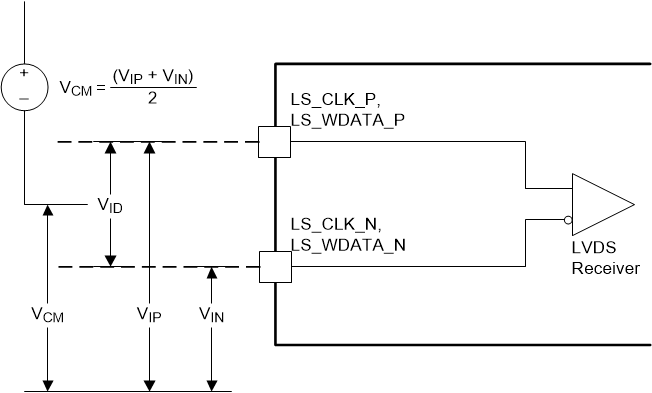

DLP472TE LSIF Voltage RequirementsFigure 5-7 LSIF Voltage Requirements

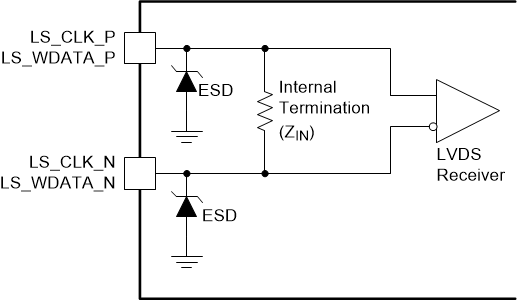

DLP472TE LSIF Equivalent InputFigure 5-8 LSIF Equivalent Input
DLP472TE LVCMOS Input HysteresisFigure 5-9 LVCMOS Input Hysteresis
DLP472TE LVCMOS Rise, Fall Time Slew RateFigure 5-10 LVCMOS Rise, Fall Time Slew Rate
DLP472TE HSSI Waveform RequirementsFigure 5-11 HSSI Waveform Requirements
Equation 3. DLP472TE
Equation 4. DLP472TE
DLP472TE HSSI Eye CharacteristicsFigure 5-12 HSSI Eye Characteristics

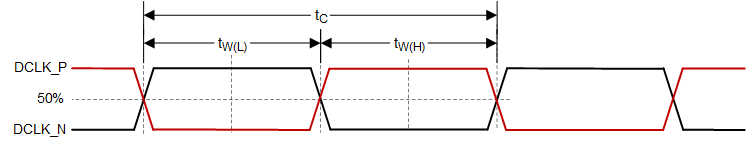

DLP472TE HSSI CLK Characterisitics

Figure 5-13 HSSI CLK Characterisitics
