6.7 Typical Characteristics

DRV5032 ICC(AVG) vs Temperature (20-Hz versions)Figure 6-1 ICC(AVG) vs Temperature (20-Hz versions)
DRV5032 ICC(AVG) vs Temperature (40-Hz version)Figure 6-3 ICC(AVG) vs Temperature (40-Hz version)
DRV5032 |BRP| vs TemperatureFigure 6-5 |BRP| vs Temperature
DRV5032 |BRP| vs VCCFigure 6-7 |BRP| vs VCC
DRV5032 ZE Version |BRP| vs TemperatureFigure 6-9 ZE Version |BRP| vs Temperature
DRV5032 ZE Version |BRP| vs VCCFigure 6-11 ZE Version |BRP| vs VCC
DRV5032 AJ Version BRP Probability Density Function
TA = 25°C, VCC = 1.65 V to 5.5 V
Figure 6-13 AJ Version BRP Probability Density Function
DRV5032 ICC(AVG) vs Temperature (5-Hz version)Figure 6-2 ICC(AVG) vs Temperature (5-Hz version)
DRV5032 |BOP| vs TemperatureFigure 6-4 |BOP| vs Temperature
DRV5032 |BOP| vs VCCFigure 6-6 |BOP| vs VCC
DRV5032 ZE Version |BOP| vs TemperatureFigure 6-8 ZE Version |BOP| vs Temperature
DRV5032 ZE Version |BOP| vs VCCFigure 6-10 ZE Version |BOP| vs VCC

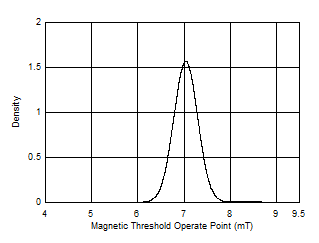

DRV5032 AJ Version BOP Probability Density Function
TA = 25°C, VCC = 1.65 V to 5.5 V
Figure 6-12 AJ Version BOP Probability Density Function

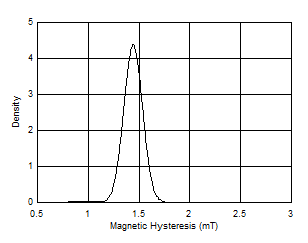

DRV5032 AJ Version BHYS Probability Density Function
TA = 25°C, VCC = 1.65 V to 5.5 V
Figure 6-14 AJ Version BHYS Probability Density Function
