8 Parameter Measurement Information

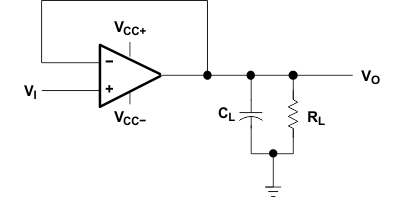

GUID-BE7B0D8F-2D40-4264-BCD8-1AE47D6B067B-low.gifFigure 8-1 Unity-Gain Amplifier
GUID-30F0FAAB-02BD-4BF6-8684-CF76C11CE2AA-low.gifFigure 8-3 Test Circuit, G = –1, for THD+N and Small-Signal Step Response

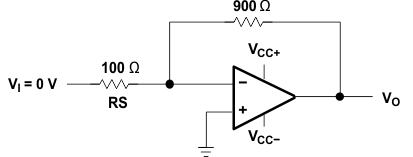

GUID-43DB2877-DCFA-4DAA-B090-A6FDFD059D83-low.gifFigure 8-2 Noise-Test Circuit
