10.2 Layout Example

The following example layout demonstrates the high speed signal trace routing to the LMH0324.

  1. BNC footprint and anti-pad: Consult BNC manufacturer for proper size.
  2. Anti-pad under passive components.
  3. 75-Ω single-ended trace.
  4. 100-Ω coupled trace.
  5. Vias with solder mask.

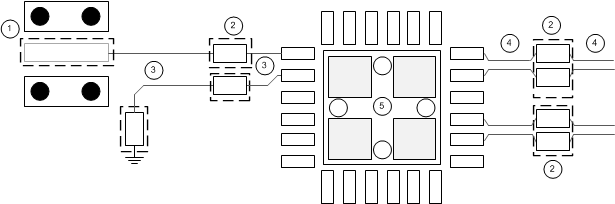

LMH0324 layout_example_snls515.gifFigure 26. LMH0324 PCB Layout Example
