8.2.3 Application Curves

The graphs given below show the gain, input return loss, and output return loss of the design with different DAC terminations.

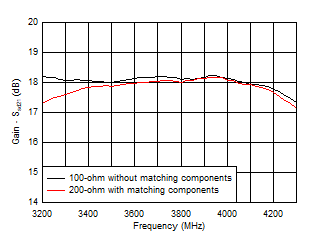

GUID-16EA2B02-2C9C-451E-BF53-7D15BFDABE9A-low.gifFigure 8-3 Gain vs Frequency for Different DAC Terminations
GUID-DA1A0ADC-9E58-4ABC-8720-FE324D83D815-low.gifFigure 8-5 Output Return Loss vs Frequency for Different DAC Terminations

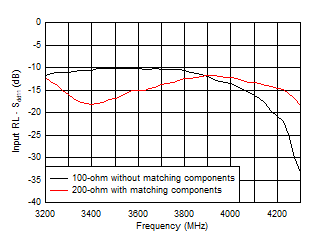

GUID-3F7BDA27-BEBE-403C-82EE-2FF4AAF5D659-low.gifFigure 8-4 Input Return Loss vs Frequency for Different DAC Terminations
