9.2.3 Application Curves

Unless otherwise specified the following conditions apply: VIN = 12 V, TA = 25°C. The circuit is shown in Figure 9-27, with the appropriate BOM from Table 9-3.

VOUT = 5 V400 kHzRNX Package
Figure 9-5 Efficiency
VOUT = 5 V2.1 MHzRNX Package
Figure 9-7 Efficiency
VOUT = 5 V
Figure 9-9 Line and Load Regulation
VOUT = 5 VƒSW = 400 kHz
Figure 9-11 Mode Change Thresholds
VIN = 12 VVOUT = 5 V
tf = tr = 2 µsIOUT = 0 A to 3 A
Figure 9-13 Load Transient
VOUT = 3.3 V
Figure 9-15 Line and Load Regulation
VOUT = 3.3 VƒSW = 400 kHz
Figure 9-17 Mode Change Thresholds
VIN = 12 VVOUT = 3.3 V
tf = tr = 2 µsIOUT = 0 A to 3 A
Figure 9-19 Load Transient
VIN = 12 VVOUT = 5 VIOUT = 3 A
ƒSW = 400 kHzRNX package

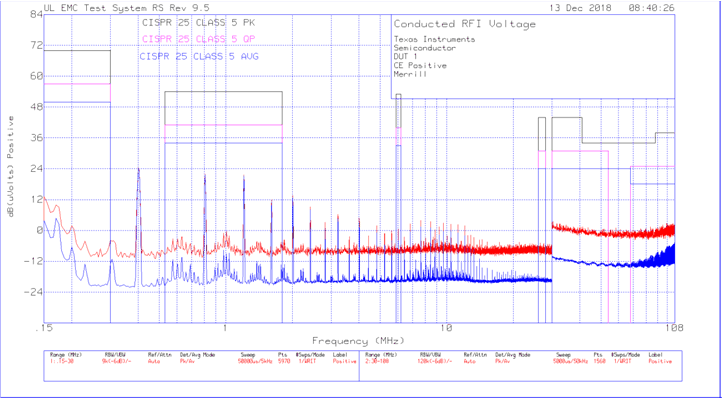

Figure 9-21 Conducted EMI
VIN = 12 VVOUT = 5 VIOUT = 3 A
ƒSW = 400 kHzRNX package
Figure 9-23 Radiated EMI Biconical Antenna (Vertical)
VIN = 12 VVOUT = 5 VIOUT = 3 A
ƒSW = 400 kHzRNX package

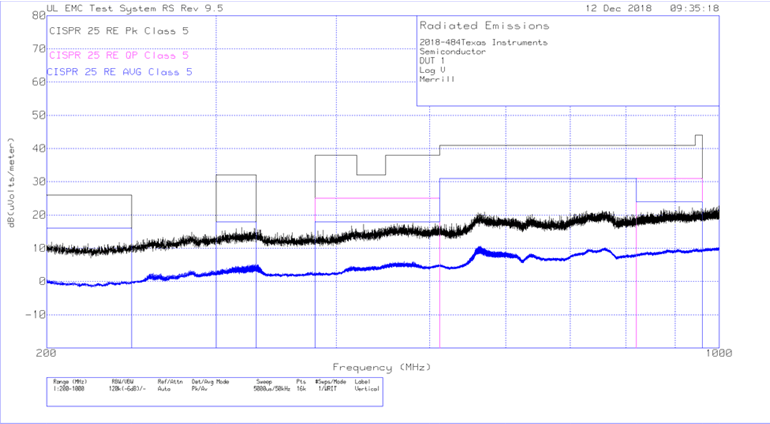

Figure 9-25 Radiated EMI Log-periodic Antenna (Vertical)
VOUT = 3.3 V400 kHzRNX Package
Figure 9-6 Efficiency
VOUT = 3.3 V2.1 MHzRNX Package
Figure 9-8 Efficiency
VOUT = 5 VIOUT = 0 ARFBT = 1 MΩ
Figure 9-10 Input Supply Current
VOUT = 5 VƒSW = 2100 kHz
Figure 9-12 Switching Frequency vs Output Current
VIN = 12 VVOUT = 5 V
tf = tr = 2 µsIOUT = 1 A to 3 A

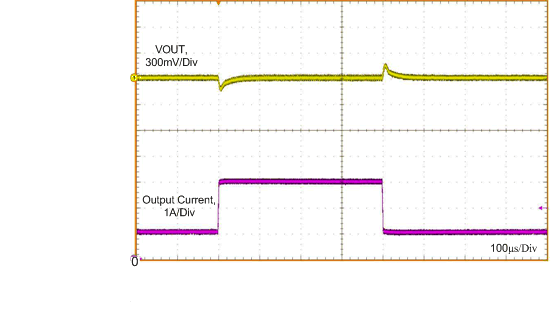

Figure 9-14 Load Transient
VOUT = 3.3 VIOUT = 0 ARFBT = 1 MΩ
Figure 9-16 Input Supply Current
VOUT = 3.3 V ƒSW = 2100 kHz
Figure 9-18 Switching Frequency vs Output Current
VIN = 12 VVOUT = 3.3VIOUT = 1 A to 3 A
tf = tr = 2 µs

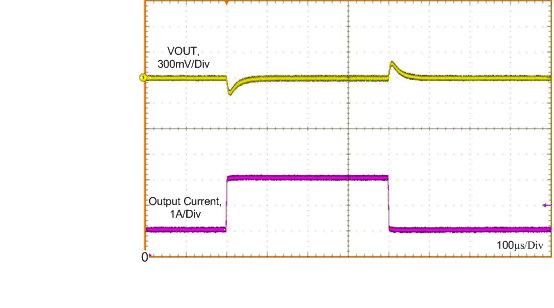

Figure 9-20 Load Transient
VIN = 12 VVOUT = 5 VIOUT = 3 A
ƒSW = 400 kHzRNX package

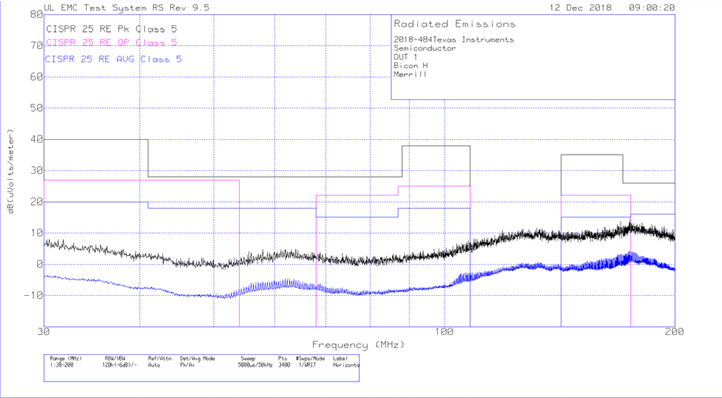

Figure 9-22 Radiated EMI Biconical Antenna (Horizontal)
VIN = 12 VVOUT = 5 VIOUT = 3 A
ƒSW = 400 kHzRNX package
Figure 9-24 Radiated EMI Log-Periodic Antenna (Horizontal)
VIN = 12 VVOUT = 5 VIOUT = 3 A
ƒSW = 400 kHzRNX package
Figure 9-26 Radiated EMI
Rod Antenna

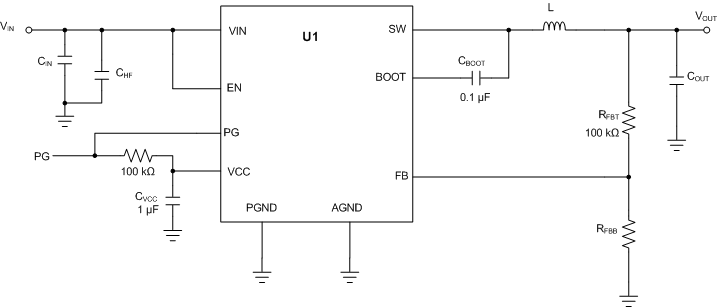

GUID-62DF9C73-09B0-4682-88E6-26F0455886D5-low.gifFigure 9-27 Circuit for Application Curves
Table 9-3 BOM for Typical Application Curves RNX Package(1)
VOUTFREQUENCYRFBBCOUTCIN + CHFLU1
3.3 V400 kHz43.3 kΩ4 × 22 µF2 × 4.7 µF + 2 × 100 nF6.8 µH, 14 mΩLMR33630ARNX
3.3 V2100 kHz43.3 kΩ4 × 22 µF2 × 4.7 µF + 2 × 100 nF1.2 µH, 7 mΩLMR33630CRNX
5 V400 kHz24.9 kΩ4 × 22 µF2 × 4.7 µF + 2 × 100 nF8 µH, 25 mΩLMR33630ARNX
5 V2100 kHz24.9 kΩ4 × 22 µF2 × 4.7 µF + 2 × 100 nF1.5 µH, 8.2 mΩLMR33630CRNX
(1) The values in this table were selected to enhance certain performance criteria and may not represent typical values.

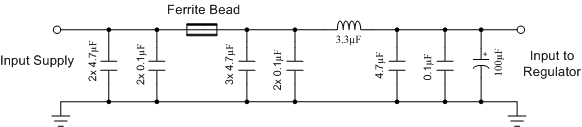

GUID-8DE3335C-240F-4594-8EAF-B4A052336D04-low.gifFigure 9-28 Typical Input EMI Filter
Filter Used Only for EMI Measurements Found in Application Curves
