5 Pin Configuration and Functions

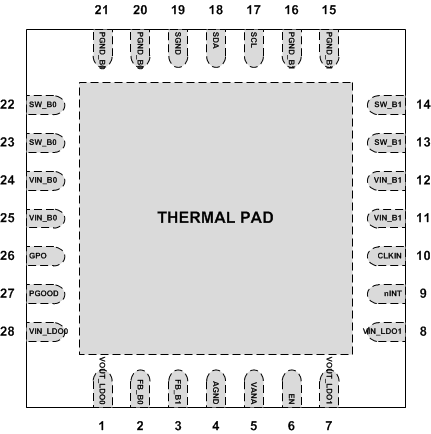

GUID-779B05A5-E763-4525-BF1F-F9D81E6A4FCB-low.gif Figure 5-1 RHD Package28-Pin VQFN With Thermal PadTop View
Table 5-1 Pin Functions
PIN TYPE(1) DESCRIPTION
NUMBER NAME
1 VOUT_LDO0 P/O LDO0 output. If the LDO0 is not used, leave the pin floating.
2 FB_B0 A Output voltage feedback (positive) for Buck 0.
3 FB_B1 A Output voltage feedback (positive) for Buck 1 in two single-phase configuration and output ground feedback (negative) for Buck 0 in dual-phase configuration.
4 AGND G Ground.
5 VANA P/I Supply voltage for analog and digital blocks. Must be connected to same node with VIN_Bx.
6 EN D/I Programmable enable signal for regulators and GPOs. If the pin is not used, leave the pin floating.
7 VOUT_LDO1 P/O LDO1 output. If LDO1 is not used, leave the pin floating.
8 VIN_LDO1 P/I Power input for LDO1. If LDO1 is not used, connect the pin to VANA.
9 nINT D/O Open-drain interrupt output. Active LOW. If the pin is not used, connect the pin to ground.
10 CLKIN D/I/O External clock input. Alternative function is general-purpose digital output (GPO2). If the pin is not used, leave the pin floating.
11, 12 VIN_B1 P/I Input for Buck 1. The separate power pins VIN_Bx are not connected together internally - VIN_Bx pins must be connected together in the application and be locally bypassed.
13, 14 SW_B1 P/O Buck 1 switch node. If the Buck 1 is not used, leave the pin floating.
15, 16 PGND_B1 P/G Power ground for Buck 1.
17 SCL D/I Serial interface clock input for I2C access. Connect a pullup resistor. If the I2C interface is not used, connect the pin to Ground.
18 SDA D/I/O Serial interface data input and output for I2C access. Connect a pullup resistor. If the I2C interface is not used, connect the pin to Ground.
19 SGND G Ground.
20, 21 PGND_B0 P/G Power ground for Buck 0.
22, 23 SW_B0 P/O Buck 0 switch node. If the Buck 0 is not used, leave the pin floating.
24, 25 VIN_B0 P/I Input for Buck 0. The separate power pins VIN_Bx are not connected together internally - VIN_Bx pins must be connected together in the application and be locally bypassed.
26 GPO D/O General-purpose digital output. If the pin is not used, leave the pin floating.
27 PGOOD D/O Power-good indication signal. If the pin is not used, leave the pin floating.
28 VIN_LDO0 P/I Power input for LDO0. If the LDO0 is not used, connect the pin to VANA.
Thermal Pad — — Connect to PCB ground plane using multiple vias for good thermal performance.
(1) A: Analog Pin, D: Digital Pin, G: Ground Pin, P: Power Pin, I: Input Pin, and O: Output Pin.
