5 Pin Configuration and Functions

OPA202 D and DGK Packages
8-Pin SOIC and 8-Pin VSSOP
Top View
OPA202 OPA2202 OPA4202 DAPPER_Single_DIP.gif
OPA202 DBV Package
5-Pin SOT-23
Top View
OPA202 OPA2202 OPA4202 DAPPER_Single_SOT23.gif

Pin Functions: OPA202

PIN I/O DESCRIPTION
NAME NO.
D (SOIC)
DGK (VSSOP)		 DBV (SOT-23)
–IN 2 4 I Inverting input
+IN 3 3 I Noninverting input
NC 1, 5, 8 — — No internal connection (can be left floating)
OUT 6 1 O Output
V– 4 2 — Negative (lowest) power supply
V+ 7 5 — Positive (highest) power supply
OPA2202 D and DGK Packages
8-Pin SOIC VSSOP
Top View
OPA202 OPA2202 OPA4202 DAPPER_Dual_DIP.gif

Pin Functions: OPA2202

PIN I/O DESCRIPTION
NAME NO.
–IN A 2 I Inverting input channel A
+IN A 3 I Noninverting input channel A
–IN B 6 I Inverting input channel B
+IN B 5 I Noninverting input channel B
OUT A 1 O Output channel A
OUT B 7 O Output channel B
V– 4 — Negative supply
V+ 8 — Positive supply

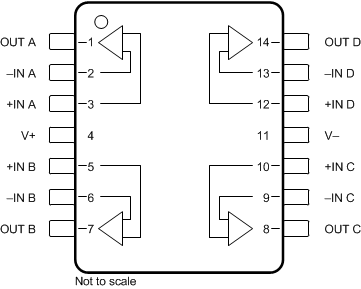

OPA4202 D and PW Packages
14-Pin SOIC and 14-Pin TSSOP
Top View
OPA202 OPA2202 OPA4202 DAPPER_Quad_DIP.gif

Pin Functions: OPA4202

PIN I/O DESCRIPTION
NAME NO.
–IN A 2 I Inverting input channel A
+IN A 3 I Noninverting input channel A
–IN B 6 I Inverting input channel B
+IN B 5 I Noninverting input channel B
–IN C 9 I Inverting input channel C
+IN C 10 I Noninverting input channel C
–IN D 13 I Inverting input channel D
+IN D 12 I Noninverting input channel D
OUT A 1 O Output channel A
OUT B 7 O Output channel B
OUT C 8 O Output channel C
OUT D 14 O Output channel D
V– 11 — Negative supply
V+ 4 — Positive supply
