SBOS259F September   2002  – June 2018 OPA2363 , OPA2364 , OPA363 , OPA364 , OPA4364

PRODUCTION DATA.

  1. Features
  2. Applications
  3. Description
    1.     Single-Supply Microphone Preamplifier
  4. Revision History
  5. Device Comparison Table
    1. 5.1 Device Comparison Table
  6. Pin Configuration and Functions
    1.     Pin Functions: OPA363
    2.     Pin Functions: OPA2363
    3.     Pin Functions: OPA364
    4.     Pin Functions: OPA2364
    5.     Pin Functions: OPA4364
  7. Specifications
    1. 7.1  Absolute Maximum Ratings
    2. 7.2  ESD Ratings
    3. 7.3  Recommended Operating Conditions
    4. 7.4  Thermal Information: OPA363
    5. 7.5  Thermal Information: OPA364
    6. 7.6  Thermal Information: OPA2363
    7. 7.7  Thermal Information: OPA2364
    8. 7.8  Thermal Information: OPA4364
    9. 7.9  Electrical Characteristics
    10. 7.10 Typical Characteristics
  8. Detailed Description
    1. 8.1 Overview
    2. 8.2 Functional Block Diagram
    3. 8.3 Feature Description
      1. 8.3.1 Rail-to-Rail Input
      2. 8.3.2 Operating Voltage
      3. 8.3.3 Capacitive Load
      4. 8.3.4 Input and ESD Protection
    4. 8.4 Device Functional Modes
      1. 8.4.1 Enable Function
  9. Application and Implementation
    1. 9.1 Application Information
      1. 9.1.1 Achieving Output Swing to the Op Amp Negative Rail
      2. 9.1.2 Directly Driving the ADS8324 and the MSP430
      3. 9.1.3 Audio Applications
      4. 9.1.4 Active Filtering
    2. 9.2 Typical Application
      1. 9.2.1 Single-Supply Electret Microphone Preamplifier
        1. 9.2.1.1 Design Requirements
        2. 9.2.1.2 Detailed Design Procedure
        3. 9.2.1.3 Application Curve
  10. 10Power Supply Recommendations
  11. 11Layout
    1. 11.1 Layout Guidelines
    2. 11.2 Layout Example
  12. 12Device and Documentation Support
    1. 12.1 Device Support
      1. 12.1.1 Development Support
        1. 12.1.1.1 TINA-TI™ (Free Software Download)
        2. 12.1.1.2 DIP Adapter EVM
        3. 12.1.1.3 Universal Op Amp EVM
        4. 12.1.1.4 TI Precision Designs
        5. 12.1.1.5 WEBENCH Filter Designer
    2. 12.2 Documentation Support
      1. 12.2.1 Related Documentation
    3. 12.3 Related Links
    4. 12.4 Receiving Notification of Documentation Updates
    5. 12.5 Community Resource
    6. 12.6 Trademarks
    7. 12.7 Electrostatic Discharge Caution
    8. 12.8 Glossary
  13. 13Mechanical, Packaging, and Orderable Information

Package Options

Mechanical Data (Package|Pins)
Thermal pad, mechanical data (Package|Pins)
Orderable Information

Typical Characteristics

at TA = 25°C, RL = 10 kΩ connected to VS / 2, VOUT = VS / 2, and VCM = VS / 2, (unless otherwise noted)
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_open_loop_gain_phase-frq_bos259.gif
Figure 1. Open-Loop Gain and Phase vs Frequency
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_psrr-frq_bos259.gif
Figure 3. Power-Supply Rejection Ratio vs Frequency
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_thdn-frq_18v_bos259.gif
Figure 5. Total Harmonic Distortion + Noise Ratio vs Frequency
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_spectral_density-frq_bos259.gif
Figure 7. Input Voltage Noise Spectral Density vs Frequency
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_vout_swing-iout_bos259.gif
Figure 9. Output Voltage Swing vs Output Current

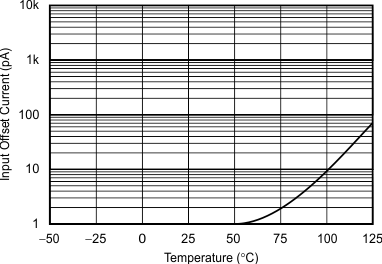

OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_offset_current-tmp_bos259.gif
Figure 11. Input Offset Current vs Temperature
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_overshoot-load_cap_bos259.gif
Figure 13. Small-Signal Overshoot vs Load Capacitance
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_offset_drift_bos259.gif
Figure 15. Offset Drift Distribution
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_output_enable_bos259.gif
Figure 17. Output Enable Characteristic (VS = 5 V,
VOUT = 20-kHz Sinusoid)
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_small-signal_step_response_bos259.gif
CL = 100 pF
Figure 19. Small-Signal Step Response
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_cmrr-frq_bos259.gif
Figure 2. Common-Mode Rejection Ratio vs Frequency
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_iq-vs_bos259.gif
Figure 4. Quiescent Current vs Supply Voltage
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_thdn-frq_5v_bos259.gif
Figure 6. Total Harmonic Distortion + Noise Ratio vs Frequency
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_isc-vs_bos259.gif
Figure 8. Short-Circuit Current vs Supply Voltage
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_ibias-vcm_bos259.gif
Figure 10. Input Bias Current vs Input Common-Mode Voltage
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_bias_current-tmp_bos259.gif
Figure 12. Input Bias Current vs Temperature
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_settling_time-gain_bos259.gif
Figure 14. Settling Time vs Closed-Loop Gain
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_offset_voltage_prod_bos259.gif
Figure 16. Offset Voltage Production Distribution
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_chan_sep-frq_bos259.gif
Figure 18. Channel Separation vs Frequency
OPA363 OPA2363 OPA364 OPA2364 OPA4364 tc_large-signal_step_response_bos259.gif
CL = 100 pF
Figure 20. Large-Signal Step Response
