4 Pin Configuration and Functions

OPA383 OPA2383 OPA4383 OPA383: DBV (Preview) Package, 5-Pin SOT-23 (Top View)Figure 4-1 OPA383: DBV (Preview) Package, 5-Pin SOT-23 (Top View)
OPA383 OPA2383 OPA4383 OPA383: DCK (Preview) Package, 5-Pin SC70 (Top View)Figure 4-2 OPA383: DCK (Preview) Package, 5-Pin SC70 (Top View)
Table 4-1 Pin Functions: OPA383
PIN TYPE DESCRIPTION
NAME NO.
DBV (SOT-23) DCK (SC70)
–IN 4 3 Input Inverting input
+IN 3 1 Input Noninverting input
OUT 1 4 Output Output
V– 2 2 Power Negative (lowest) power supply
V+ 5 5 Power Positive (highest) power supply
OPA383 OPA2383 OPA4383 OPA2383: DDF (Preview) Package, 8-Pin SOT-23, and DGK Package, 8-Pin VSSOP (Top View) Figure 4-3 OPA2383: DDF (Preview) Package, 8-Pin SOT-23, and DGK Package, 8-Pin VSSOP (Top View)
Table 4-2 Pin Functions: OPA2383
PIN TYPE DESCRIPTION
NAME NO.
DDF (SOT-23) DGK (VSSOP)
–IN A 2 2 Input Inverting input, channel A
–IN B 6 6 Input Inverting input, channel B
+IN A 3 3 Input Noninverting input, channel A
+IN B 5 5 Input Noninverting input, channel B
OUT A 1 1 Output Output, channel A
OUT B 7 7 Output Output, channel B
V– 4 4 Power Negative (lowest) power supply
V+ 8 8 Power Positive (highest) power supply

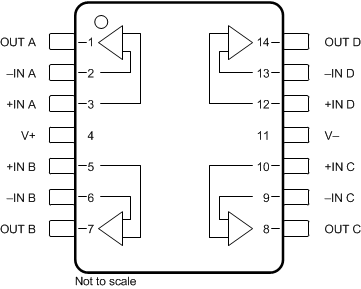

OPA383 OPA2383 OPA4383 OPA4383: PW (Preview) Package, 14-Pin TSSOP (Top View) Figure 4-4 OPA4383: PW (Preview) Package, 14-Pin TSSOP (Top View)
Table 4-3 Pin Functions: OPA4383
PIN TYPE DESCRIPTION
NAME NO.
–IN A 2 Input Inverting input, channel A
–IN B 6 Input Inverting input, channel B
–IN C 9 Input Inverting input, channel C
–IN D 13 Input Inverting input, channel D
+IN A 3 Input Noninverting input, channel A
+IN B 5 Input Noninverting input, channel B
+IN C 10 Input Noninverting input, channel C
+IN D 12 Input Noninverting input, channel D
OUT A 1 Output Output, channel A
OUT B 7 Output Output, channel B
OUT C 8 Output Output, channel C
OUT D 14 Output Output, channel D
V– 11 Power Negative (lowest) power supply
V+ 4 Power Positive (highest) power supply
