7.6 Typical Characteristics

at TA = 25°C, IL = 0 mA, and VIN = 5 V, using REF6025 (unless otherwise noted)
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C002_SBOS708.png
TA = –40°C to +125°C
Figure 1. Drift Distribution
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C005_SBOS708.png

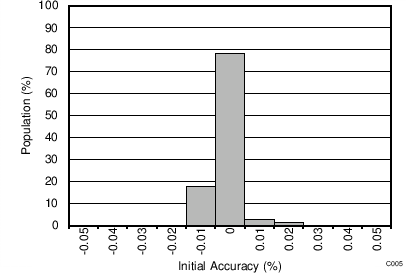

Figure 3. Initial Accuracy Distribution
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C001_SBOS708.png
Figure 5. Output Voltage Accuracy vs Temperature
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C006_SBOS708.png
VIN = VOUT + 600 mV,
IL = 0 mA to 4 mA
Figure 7. Load Regulation Sourcing vs Temperature
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C010_SBOS748.png
VOUT + 0.25 V ≤ VIN ≤ 5.5 V
Figure 9. Line Regulation vs Temperature
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C020_SBOS708.png
Figure 11. Supply Current vs Input Voltage
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C021_SBOS708.png
Figure 13. 0.1-Hz to 10-Hz Noise
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C011_SBOS708.png
Figure 15. PSRR vs Frequency
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C014_SBOS708.png
Load current = ±1 mA

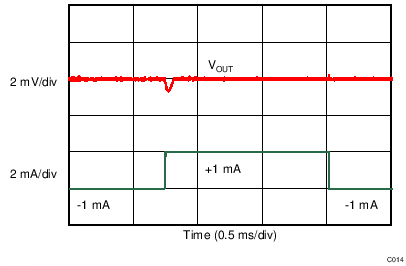

Figure 17. Load Transient Response
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C013_SBOS708.png

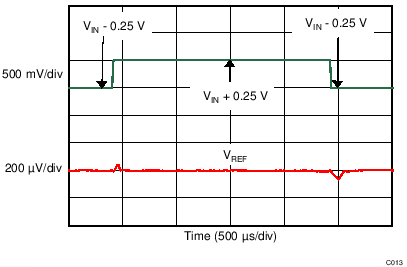

Figure 19. Line Transient Response
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C027_SBOS708.png
Figure 21. Thermal Hysteresis Distribution (Cycle 2)
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C024_SBOS708.png
REF6050 driving REF pin of ADS8881,
fIN = 1 kHz, SNR = 100.5 dB, THD = –125.9 dB
Figure 23. Typical FFT Plot
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C038_SBOS708.png
REF6050 driving REF pin of ADS8881,
fIN = 10 kHz, SNR = 99.2 dB, THD = –119.4 dB
Figure 25. Typical FFT Plot
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C031_SBOS708.png
REF6041 driving REF pin of ADS8881,
fIN = 2 kHz, SNR = 99 dB, THD = –123.6 dB
Figure 27. Typical FFT Plot
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C033_SBOS708.png
REF6025 driving REF pin of ADS8881,
fIN = 1 kHz, SNR = 95.4 dB, THD = –124 dB

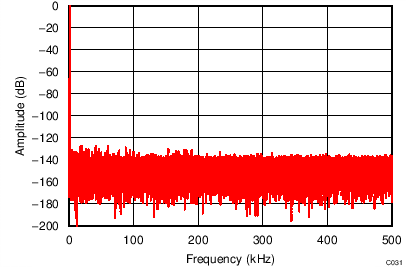

Figure 29. Typical FFT Plot
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C035_SBOS708.png
REF6025 driving REF pin of ADS8881,
fIN = 10 kHz, SNR = 94.0 dB, THD = –119.3 dB
Figure 31. Typical FFT Plot
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C048_SBOS708.png
REF6050 driving REF pin of ADS8881 operating at 1 MSPS,
negative full-scale input to ADS8881
Figure 33. Reference Droop
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C050_SBOS708.png
AINP = AINN = VREF / 2 for ADS8881,
sampling rate = 1 MSPS

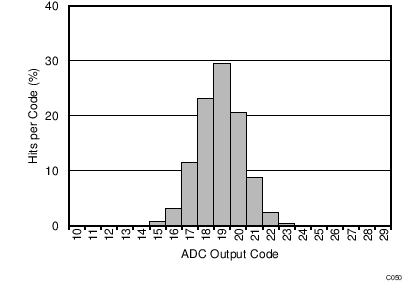

Figure 35. DC Input Histogram
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C052_SBOS708.png
AINP = AINN = VREF / 2 for ADS8881,
sampling rate = 100 kSPS
Figure 37. DC Input Histogram
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C042_SBOS708.png
1 LSB = 19.07 µV, with ADS8881 at 1 MSPS
Figure 39. Reference Droop Comparison
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C003_SBOS708.png
TA = –40°C to +85°C
Figure 2. Drift Distribution
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C004_SBOS708.png
Figure 4. Solder-Heat Shift Distribution
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C017_SBOS708.png
Figure 6. Dropout Voltage vs Load Current
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C007_SBOS708.png
VIN = VOUT + 600 mV,
IL = 0 mA to 4 mA

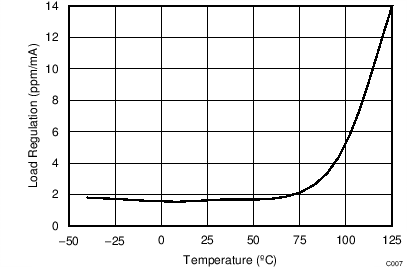

Figure 8. Load Regulation Sinking vs Temperature
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C019_SBOS708.png
Figure 10. Supply Current vs Temperature
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C018_SBOS708.png
Figure 12. Turn-On Settling Time
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C022_SBOS708.png
Figure 14. Output-Voltage Noise Spectrum
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C025_SBOS708.png
Graph obtained by design simulation
Figure 16. Output Impedance vs Frequency
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C015_SBOS708.png
Load current = ±3 mA
Figure 18. Load Transient Response
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C028_SBOS708.png
Figure 20. Thermal Hysteresis Distribution (Cycle 1)
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C063_SBOS708.png
Figure 22. Output Impedance Comparison
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C037_SBOS708.png
REF6050 driving REF pin of ADS8881,
fIN = 2 kHz, SNR = 100.4 dB, THD = –123.9 dB
Figure 24. Typical FFT Plot
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C030_SBOS708.png
REF6041 driving REF pin of ADS8881,
fIN = 1 kHz, SNR = 99 dB, THD = –124.4 dB
Figure 26. Typical FFT Plot
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C032_SBOS708.png
REF6041 driving REF pin of ADS8881,
fIN = 10 kHz, SNR = 97.2 dB, THD = –119.7 dB

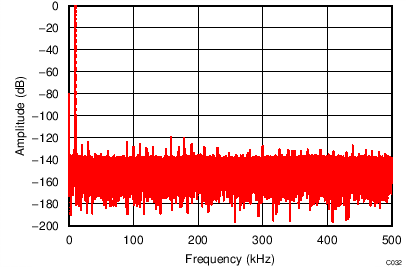

Figure 28. Typical FFT Plot
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C034_SBOS708.png
REF6025 driving REF pin of ADS8881,
fIN = 2 kHz, SNR = 95.4 dB, THD = –123.5 dB

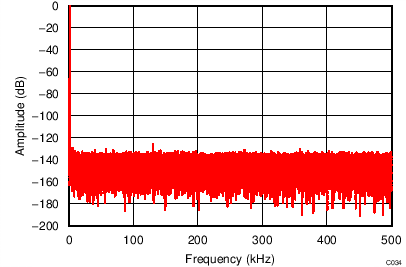

Figure 30. Typical FFT Plot
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C047_SBOS708.png
REF6050 driving REF pin of ADS8881 operating at 1 MSPS,
positive full-scale input to ADS8881
Figure 32. Reference Droop
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C049_SBOS708.png
REF6050 driving REF pin of ADS8881 operating at 1 MSPS,
AINP = AINN = VREF / 2 for ADS8881
Figure 34. Reference Droop
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C051_SBOS708.png
AINP = AINN = VREF / 2 for ADS8881,
sampling rate = 500 kSPS
Figure 36. DC Input Histogram
REF6025 REF6030 REF6033 REF6041 REF6045 REF6050 C053_SBOS708.png
AINP = AINN = VREF / 2 for ADS8881,
sampling rate = 20 kSPS
Figure 38. DC Input Histogram
