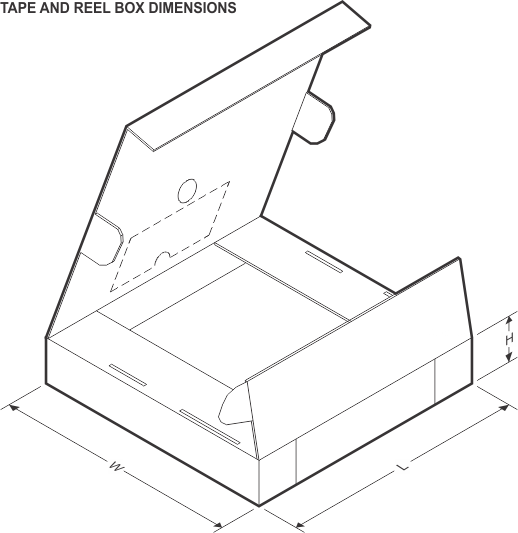

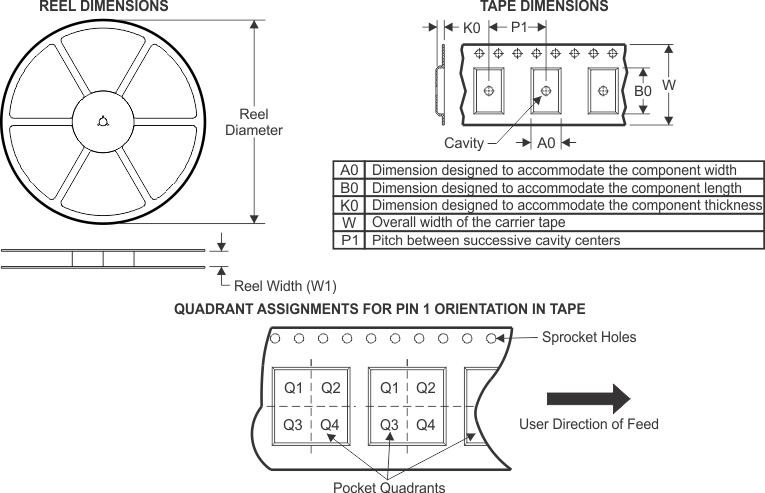

11.1 Tape and Reel Information

SN74ACT08-Q1
DevicePackage
Type		Package DrawingPinsSPQReel
Diameter (mm)		Reel
Width W1 (mm)		A0
(mm)		B0
(mm)		K0
(mm)		P1
(mm)		W
(mm)		Pin1
Quadrant
PSN74ACT08PWRQ1TSSOPPW14300033012.46.905.601.60812Q1
SN74ACT08-Q1
DevicePackage TypePackage DrawingPinsSPQLength (mm)Width (mm)Height (mm)
PSN74ACT08PWRQ1TSSOPPW14300035635635
