5 Pin Configuration and Functions

GUID-A5F69498-E5D5-42C9-AE74-9EADEFA97D81-low.gifD, N, NS, J, DB, or PW Package
16-Pin SOIC, PDIP, SO, CDIP, SSOP, or TSSOP
Top View

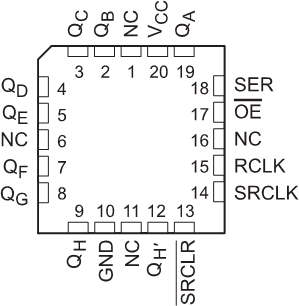

GUID-EE64ECFF-BDAB-4835-ADD5-2CF7FC15ACDE-low.gifFK Package
20-Pin LCCC
Top View
Table 5-1 Pin Functions
PIN I/O(1) DESCRIPTION
NAME SOIC, PDIP, SO, CDIP, SSOP, or TSSOP LCCC
GND 8 10 — Ground Pin
OE 13 17 I Output Enable
QA 15 19 O QA Output
QB 1 2 O QB Output
QC 2 3 O QC Output
QD 3 4 O QD Output
QE 4 5 O QE Output
QF 5 7 O QF Output
QG 6 8 O QG Output
QH 7 9 O QH Output
QH' 9 12 O QH' Output
RCLK 12 14 I RCLK Input
SER 14 18 I SER Input
SRCLK 11 14 I SRCLK Input
SRCLR 10 13 I SRCLR Input
NC — 1 — No Connection
16
11
16
VCC — 20 — Power Pin
(1) Signal Types: I = Input, O = Output, I/O = Input or Output.
