5.11 Typical Characteristics

At TA = 25°C, fSPK_AMP = 384 kHz, input signal is 1 kHz Sine, unless otherwise noted. Filter used for Load Resistance is 30 µH, unless otherwise noted.

Note: All the characteristics specified for PVDD = 16 V reffer to the DSBGA package.
RL = 4 Ω + 30 µH FIN = 1 kHz

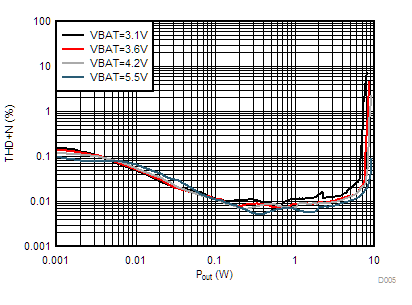

Figure 5-5 THD+N vs Output Power (DSBGA Package)
RL = 8 Ω + 30 µH FIN = 1 kHz

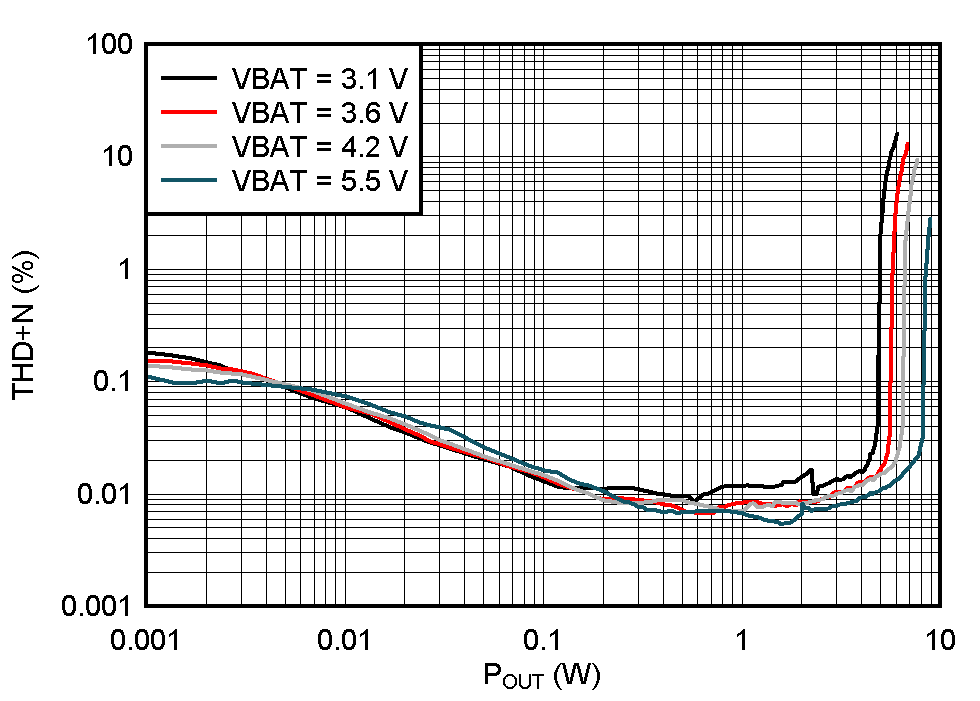

Figure 5-7 THD+N vs Output Power (DSBGA Package)
RL = 4 Ω + 30 µH FIN = 1 kHz
Figure 5-9 THD+N vs Output Power
RL = 4 Ω + 30 µH FIN = 6.667 kHz
Figure 5-11 THD+N vs Output Power (DSBGA Package)
RL = 8 Ω + 30 µH FIN = 6.667 kHz
Figure 5-13 THD+N vs Output Power (DSBGA Package)
RL = 4 Ω + 30 µH FIN = 6.667 kHz
Figure 5-15 THD+N vs Output Power

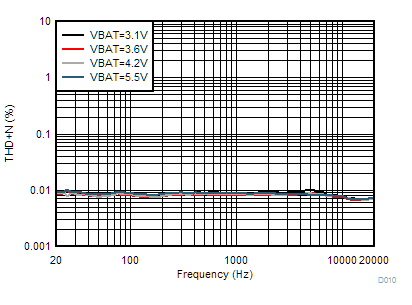

RL = 4 Ω + 30 µH P = 0.1 W

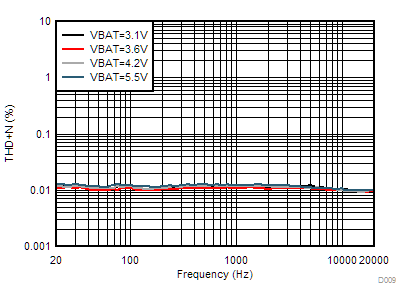

Figure 5-17 THD+N vs Frequency

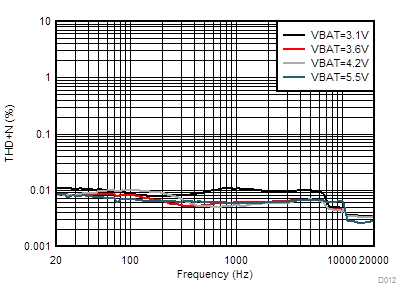

RL = 4 Ω + 30 µH P = 1 W
Figure 5-19 THD+N vs Frequency
Figure 5-21 Idle Channel Noise (A-Weighted) vs VBAT
RL = 8 Ω + 30 µH FS = 48 kHz

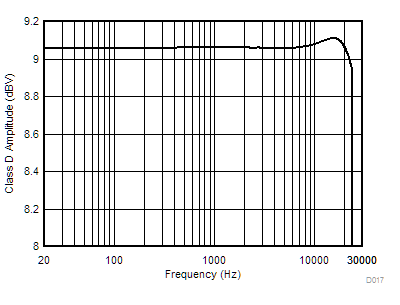

Figure 5-23 Amplitude vs Frequency

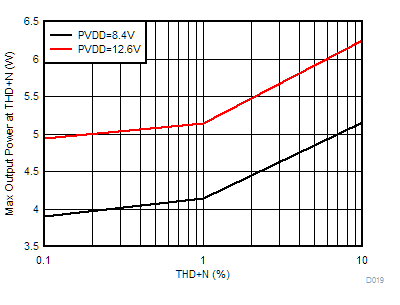

RL = 4 Ω + 30 µH
Figure 5-25 Max Output Power vs THD+N
RL = 4 Ω + 30 µH FIN = 1 kHz

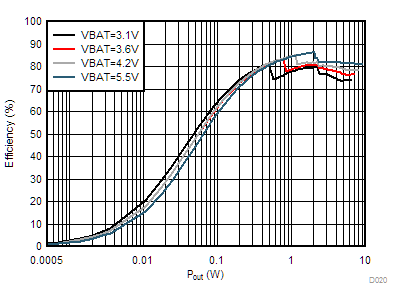

Figure 5-27 Efficiency vs Output Power
RL = 4 Ω + 30 µH FIN = 1 kHz Bypass Mode
Figure 5-29 Efficiency vs Output Power
RL = 8 Ω + 30 µH Idle Channel
Figure 5-31 AVDD PSRR vs Frequency
RL = 8 Ω + 30 µH Idle Channel
Figure 5-33 PVDD PSRR vs Frequency
Idle Channel
Figure 5-35 AVDD Idle Current vs AVDD (QFN Package)

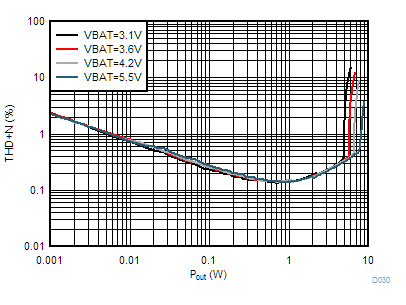

RL = 4 Ω + 30 µH FIN = 1 kHz
Figure 5-37 I-sense THD+N vs Output Power (DSBGA Package)
RL = 8 Ω + 30 µH FIN = 1 kHz
Figure 5-39 I-sense THD+N vs Output Power (DSBGA Package)

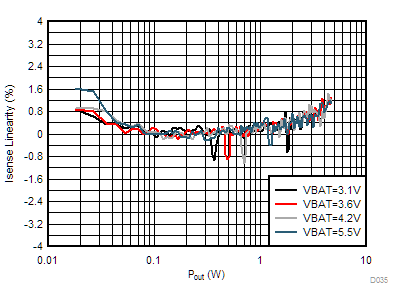

RL = 4 Ω + 30 µH FIN = 1 kHz
Figure 5-41 I-sense Linearity vs Output Power
RL = 4 Ω + 30 µH P = 1 W
Figure 5-43 I-sense THD+N vs Frequency (DSBGA Package)
RL = 8 Ω + 30 µH P = 1 W
Figure 5-45 I-sense THD+N vs Frequency (DSBGA Package)

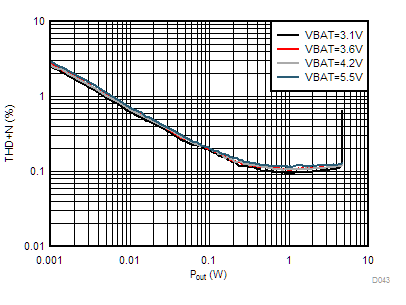

RL = 4 Ω + 30 µH FIN = 1 kHz
Figure 5-47 V-sense THD+N vs Output Power
RL = 4 Ω + 30 µH FIN = 1 kHz
Figure 5-49 V-sense Linearity vs Output Power

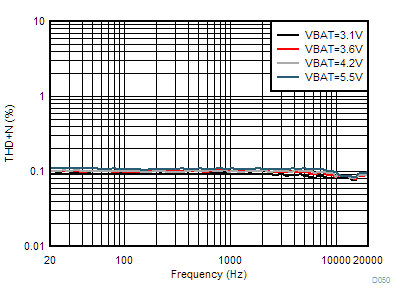

RL = 4 Ω + 30 µH P = 1 W

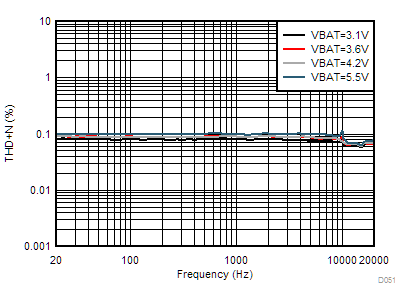

Figure 5-51 V-sense THD+N vs Frequency
RL = 4 Ω + 30 µH FIN = 1 kHz
Figure 5-53 V/I-sense Linearity vs Output Power
RL = 8 Ω + 30 µH P = 1 W
Figure 5-55 I-sense Linearity vs Temperature
RL = 8 Ω + 30 µH P = 1 W
Figure 5-57 V/I-sense Linearity vs Temperature

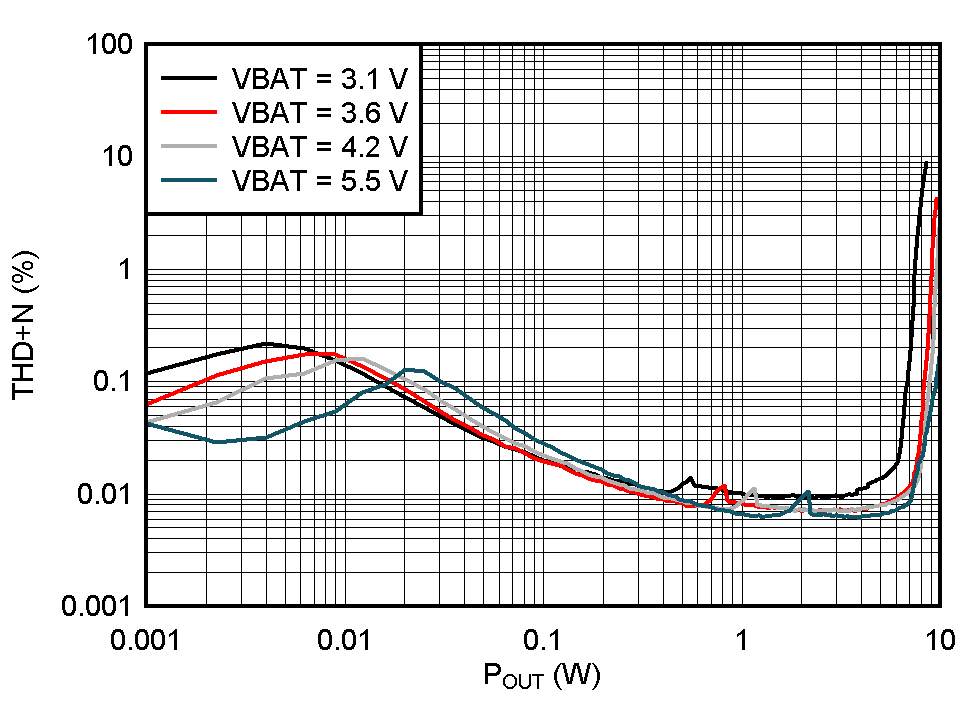

RL = 4 Ω + 30 µH FIN = 1 kHz

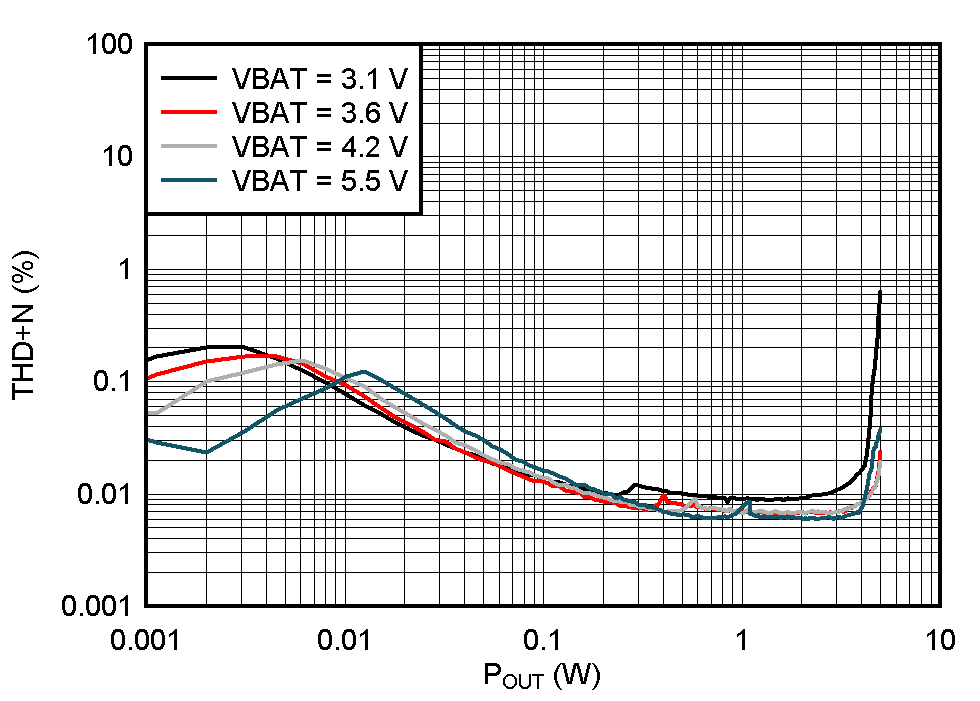

Figure 5-6 THD+N vs Output Power (QFN Package)
RL = 8 Ω + 30 µH FIN = 1 kHz
Figure 5-8 THD+N vs Output Power (QFN Package)
RL = 8 Ω + 30 µH FIN = 1 kHz
Figure 5-10 THD+N vs Output Power
RL = 4 Ω + 30 µH FIN = 6.667 kHz
Figure 5-12 THD+N vs Output Power (QFN Package)
RL = 8 Ω + 30 µH FIN = 6.667 kHz
Figure 5-14 THD+N vs Output Power (QFN Package)
RL = 8 Ω + 30 µH FIN = 6.667 kHz
Figure 5-16 THD+N vs Output Power
RL = 8 Ω + 30 µH P = 0.1 W
Figure 5-18 THD+N vs Frequency
RL = 8 Ω + 30 µH P = 1 W
Figure 5-20 THD+N vs Frequency
Boost Bypass
Figure 5-22 Idle Channel Noise (A-Weighted) vs PVDD

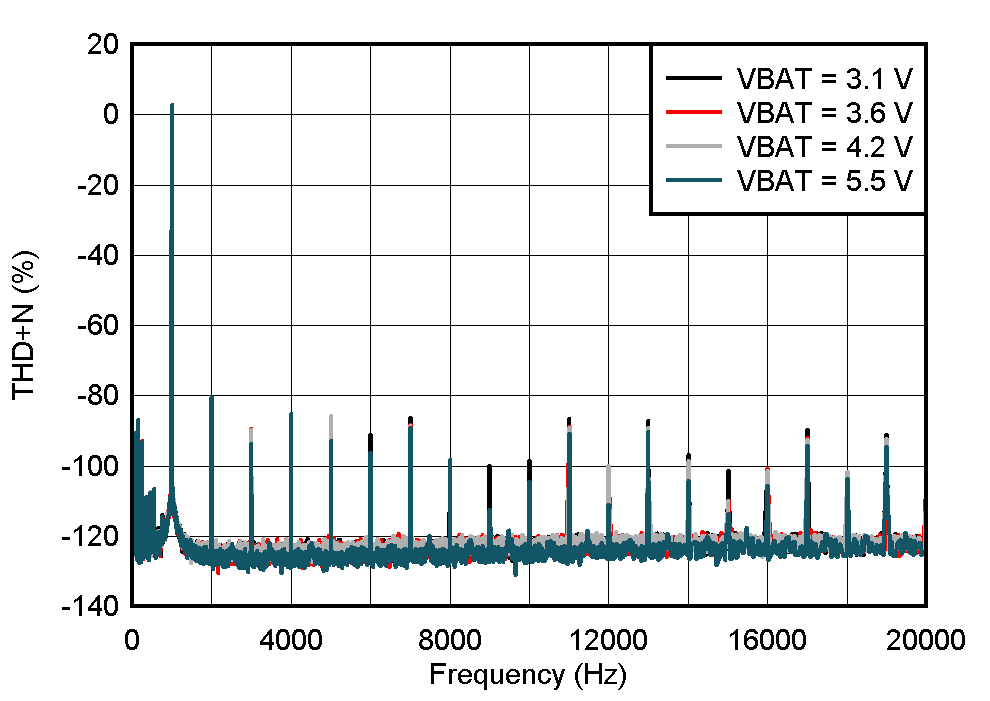

RL = 8 Ω + 30 µH FIN = 1 kHz P = 1 W
Figure 5-24 FFT Signal Plot
RL = 8 Ω + 30 µH
Figure 5-26 Max Output Power vs THD+N
RL = 8 Ω + 30 µH FIN = 1 kHz
Figure 5-28 Efficiency vs Output Power
RL = 8 Ω + 30 µH FIN = 1 kHz Bypass Mode
Figure 5-30 Efficiency vs Output Power
RL = 8 Ω + 30 µH Idle Channel
Figure 5-32 VBAT PSRR vs Frequency
Idle Channel
Figure 5-34 AVDD Idle Current vs AVDD (DSBGA Package)
Idle Channel
Figure 5-36 VBAT Idle Current vs VBAT
RL = 4 Ω + 30 µH FIN = 1 kHz
Figure 5-38 I-sense THD+N vs Output Power (QFN Package)
RL = 8 Ω + 30 µH FIN = 1 kHz
Figure 5-40 I-sense THD+N vs Output Power (QFN Package)
RL = 8 Ω + 30 µH FIN = 1 kHz
Figure 5-42 I-sense Linearity vs Output Power
RL = 4 Ω + 30 µH P = 1 W
Figure 5-44 I-sense THD+N vs Frequency (QFN Package)
RL = 8 Ω + 30 µH P = 1 W
Figure 5-46 I-sense THD+N vs Frequency (QFN Package)
RL = 8 Ω + 30 µH FIN = 1 kHz
Figure 5-48 V-sense THD+N vs Output Power
RL = 8 Ω + 30 µH FIN = 1 kHz
Figure 5-50 V-sense Linearity vs Output Power
RL = 8 Ω + 30 µH P = 1 W
Figure 5-52 V-sense THD+N vs Frequency
RL = 8 Ω + 30 µH FIN = 1 kHz
Figure 5-54 V/I-sense Linearity vs Output Power
RL = 8 Ω + 30 µH P = 1 W

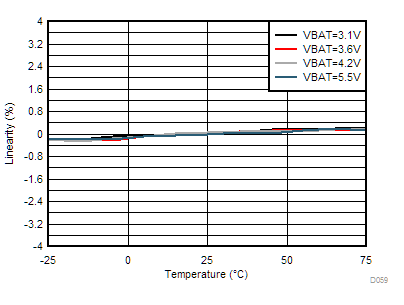

Figure 5-56 V-sense Linearity vs Temperature
