11.2 Layout Example

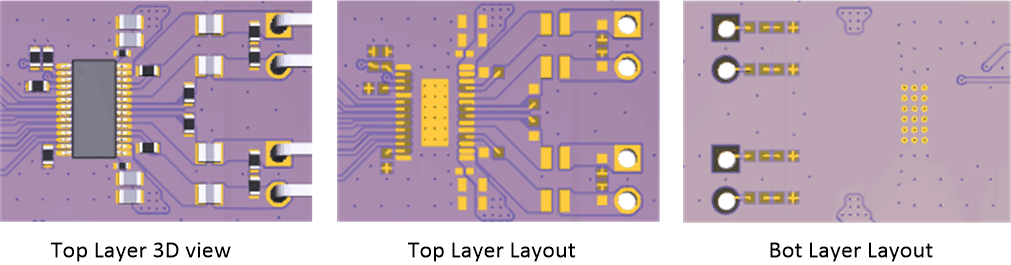

TAS5815 2.0 (Stereo BTL with Ferrite Bead as Output Filter) Layout View Figure 11-1 2.0 (Stereo BTL with Ferrite Bead as Output Filter) Layout View

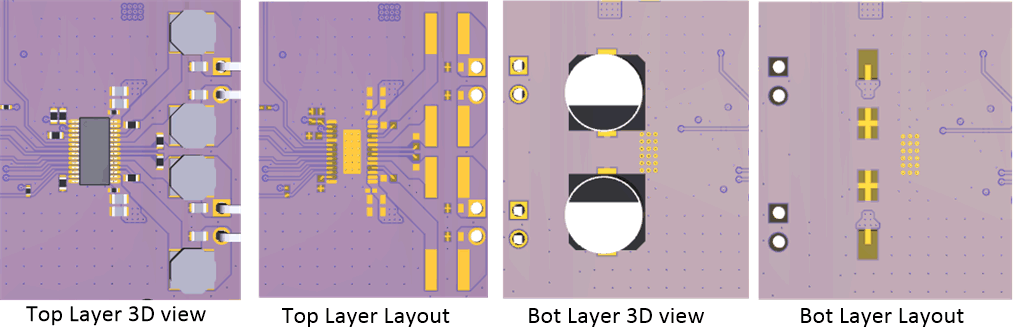

TAS5815 2.0 (Stereo BTL with Inductor as Output Filter) Layout View Figure 11-2 2.0 (Stereo BTL with Inductor as Output Filter) Layout View
