7 Parameter Measurement Information

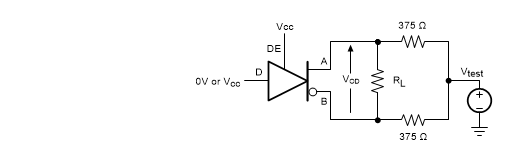

GUID-4C5988C7-A2A4-468B-B518-E9B0AC70885F-low.gif Figure 7-1 Measurement of Driver Differential Output Voltage With Common-Mode Load
GUID-260EA9E7-F7EB-42AB-8A63-4957E305D674-low.gif Figure 7-2 Measurement of Driver Differential and Common-Mode Output With RS-485 Load

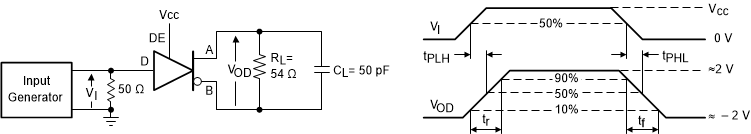

GUID-340F0467-1DE9-4770-8C42-660F61C0AABA-low.gif Figure 7-3 Measurement of Driver Differential Output Rise and Fall Times and Propagation Delays

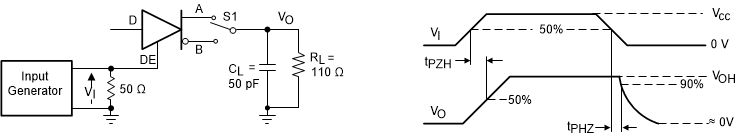

GUID-14446CE5-7E7A-4CB7-84B3-8741D01BD5E1-low.gif Figure 7-4 Measurement of Driver Enable and Disable Times With Active High Output and Pull-Down Load
GUID-92033946-3A47-4304-BEB9-FDD903557282-low.gif Figure 7-5 Measurement of Driver Enable and Disable Times With Active Low Output and Pull-up Load
GUID-D2A3F2FB-58F9-490A-8D6A-8A77EA00C2A6-low.gif Figure 7-6 Measurement of Receiver Output Rise and Fall Times and Propagation Delays

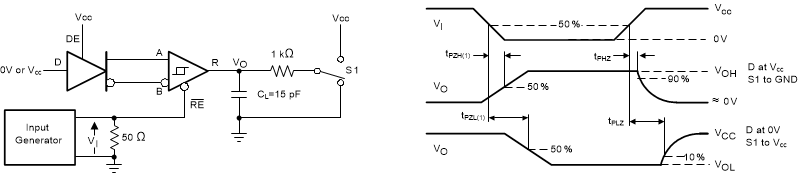

GUID-9051E126-29DB-406E-9AD3-03DB5A38F6FA-low.gif Figure 7-7 Measurement of Receiver Enable/Disable Times With Driver Enabled
GUID-FFE718C0-0F89-49B0-95E1-6A76DE18D706-low.gif Figure 7-8 Measurement of Receiver Enable Times With Driver Disabled
GUID-50C0B9B4-7200-494A-8986-927D0CC7AEDF-low.gif Figure 7-9 Fail-Safe Delay Measurements
