5.9 Typical Characteristics

At TA = +25°C and VCC = 3.3V, unless otherwise noted.

GUID-531D612F-3D94-4700-9C55-694FC032BE7E-low.gifFigure 5-4 Reference Resistor vs Output Current
GUID-78A38FCA-4D89-4C3A-89AB-AD014E79D5D3-low.pngFigure 5-6 Output Current vs Output Voltage (VCC = 5.0V)
GUID-CFCD03A8-0233-4FB4-BDC0-7E474F53DC4A-low.pngFigure 5-8 Output Current vs Output Voltage (VCC = 5.0V, Magnified)

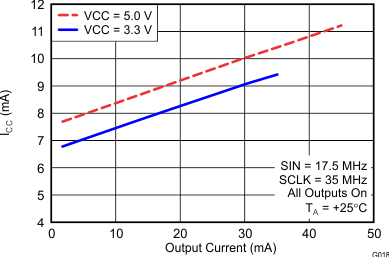

GUID-1992F44A-4C22-4F80-A75F-D3550D063D6F-low.gifFigure 5-10 Supply Current vs Output Current
GUID-C579D2DF-687B-4246-8BE6-FB1485C325BC-low.gifFigure 5-12 Constant-current Output Voltage Waveform
GUID-D6E01943-5ADD-471A-A628-59DF13C066CC-low.pngFigure 5-5 Output Current vs Output Voltage (VCC = 3.3V)
GUID-5E5FF6C2-C419-40F7-B445-8DA0B8F8E782-low.pngFigure 5-7 Output Current vs Output Voltage (VCC = 3.3V, Magnified)
GUID-014EFBBC-DCC5-4BE1-9B4C-8ABBD3DF5757-low.pngFigure 5-9 ΔIOLC vs Ambient Temperature
GUID-C91E1C96-2A7D-4BB5-8B6A-094B4FE0F8D8-low.pngFigure 5-11 Supply Current vs Ambient Temperature
